3D&2D walking beam style stamping robot

1.Introduction

Dayeepress 3/2Dwalking beam style stamping robot are two important types of robots used for stamping operations on automated production lines.The two-dimensional stamping robot is a robot that focuses on completing motion in a two-dimensional plane. It is mainly used for some simple material handling and repetitive operations, such as various stamping automated production lines, semi-automated production lines, etc.

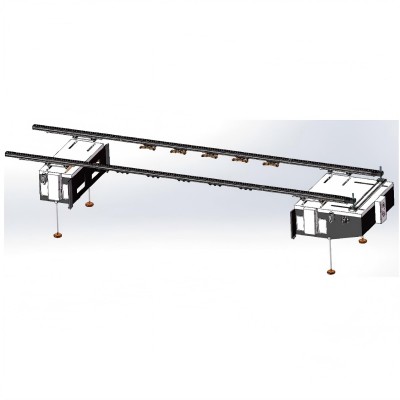

The 3D stamping robot is a motion control robot based on a three-dimensional coordinate system, used for the application of robotic arms in automated stamping production lines.It has the ability to move in three dimensions, namely precise movement in the X, Y, and Z directions, hence the name 'three-dimensional'.This type of robot can accurately grasp, move, and place stamped parts through a precise control system, greatly improving the efficiency of stamping processes.

2.Product Features

◆ Specialized equipment for single machine multi station products such as stretching and forming.

◆ Three axis modular mechanism, fast operating speed.

◆ Servo drive, stable performance, high operating accuracy.

◆ Easy to operate, user-friendly interface, and convenient for employees to learn.

3.Scope of adaptation

◆ Single machine multi process stamping, three-axis linear motion of the robotic arm, with the main and auxiliary machines installed on both sides of the machine tool.

◆ Especially suitable for multi station automatic stamping of stretch formed products.

◆ Suitable for multiple products to share an automatic stamping production line, with fast programming and easy debugging.

4.Supporting equipment

Sheet material elevator, roll material feeder (choose one of the two)

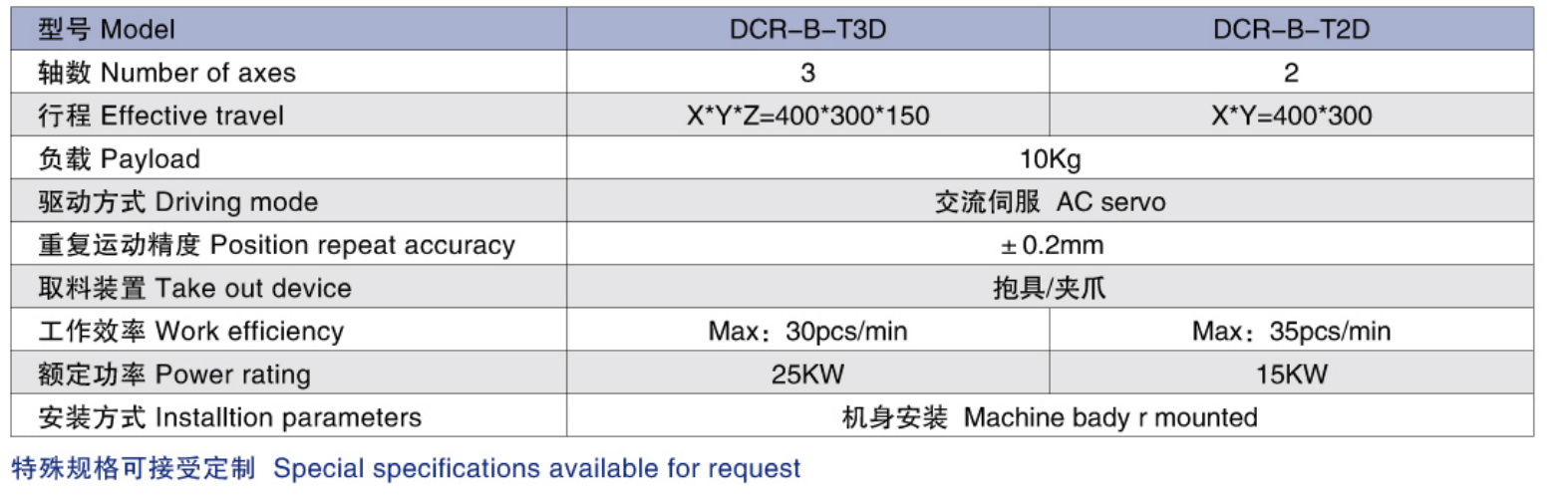

5.Technical specifications
