Various Four-Column Hydraulic Press

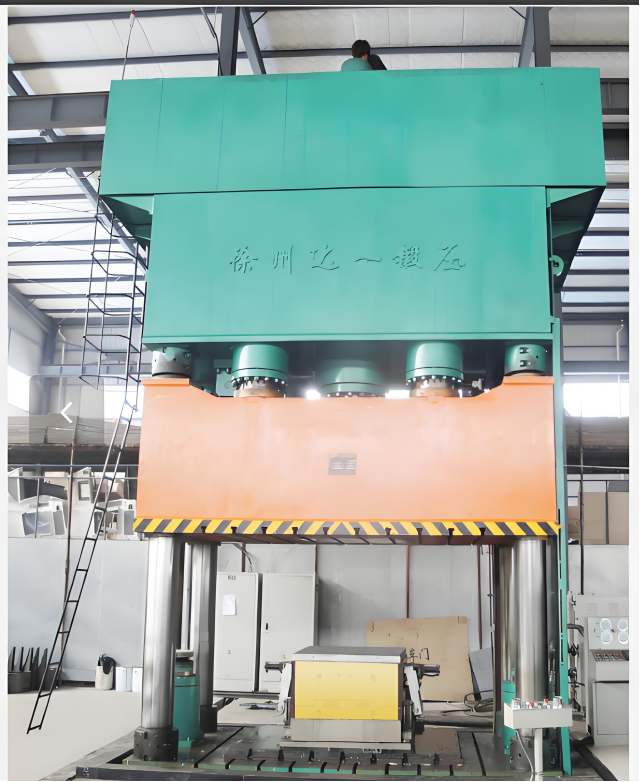

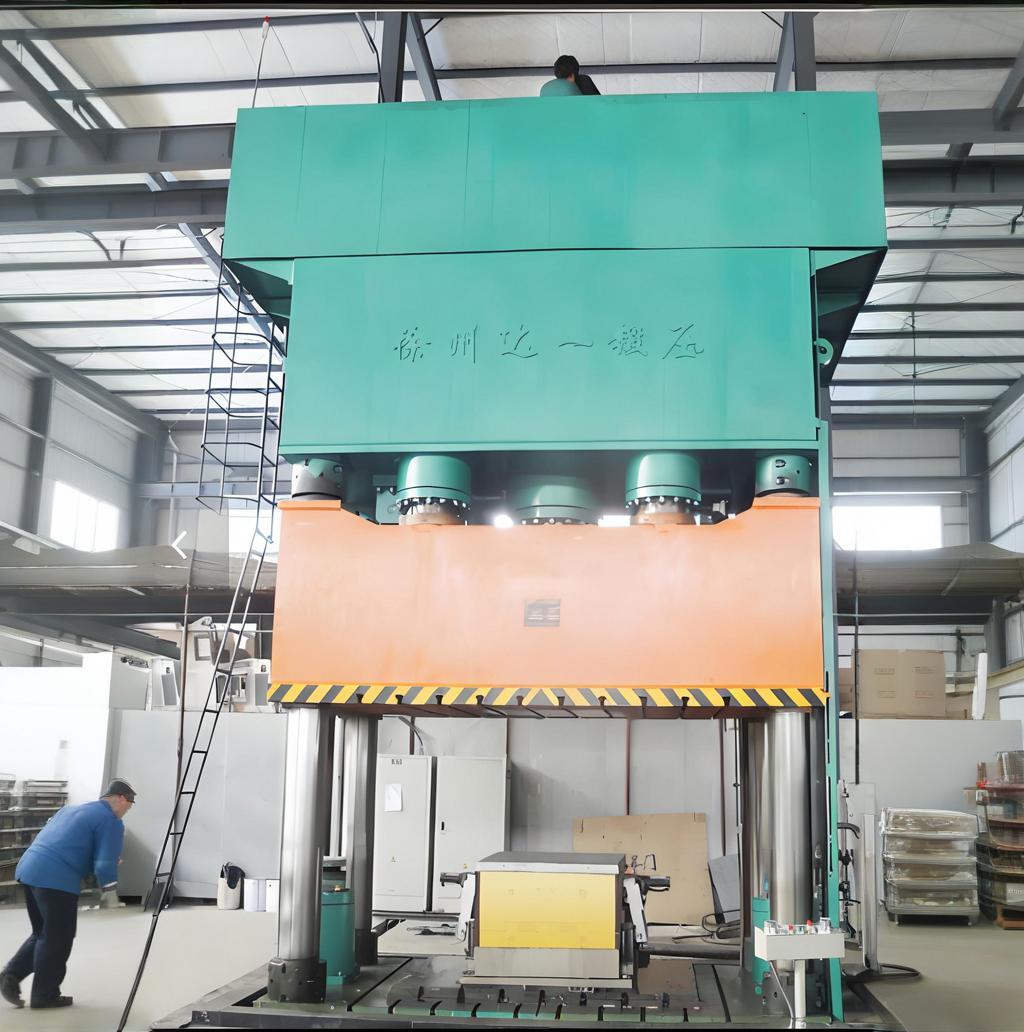

2000 ton four column hydraulic press

Max Feeding size:
Power:
Capacity:
Product description: 2000ton four column hydraulic press-YD32-2000 from Dayeepress is a high tonnage pressure forming equipment based on hydraulic transmission technology, designed specifically for heavy-duty processes such as metal forging, stamping, stretching, and composite material forming.Are usually are used in the drawing,blanking,bending,Flanging,cold extruding, straightening,pressing-in and forming technology for metal ,plastic,abrasive and insulator products.
INQUIRY EMAIL

2000ton four column hydraulic press-YD32-2000 from Dayeepress is a high tonnage pressure forming equipment based on hydraulic transmission technology, designed specifically for heavy-duty processes such as metal forging, stamping, stretching, and composite material forming.

Its core structure consists of four high-strength columns, upper and lower crossbeams, hydraulic cylinders, and intelligent control systems. It has the characteristics of pressure stability, strong resistance to eccentric loads, and flexible operation, and is widely used in high-end industrial fields such as automobile manufacturing, aerospace, and new energy equipment.

Core working principle:

·Hydraulic drive: The motor drives the hydraulic pump to output high-pressure oil, and the pressure of the oil cylinder is adjusted through the control valve group to drive the main cylinder piston to apply downward pressure.

·Four column guidance: The four columns form a closed frame with the upper and lower crossbeams, ensuring high precision and anti eccentric load capacity of the slider movement.

·Pressure control: Using a proportional hydraulic system or servo control system to achieve precise and adjustable pressure, speed, and stroke.

Core features and technical advantages:

1. Structural design features

· High-strength four-column frame: The columns are forged with high-quality alloy steel and the surface is high-frequency quenched to ensure the stability of the equipment under long-term heavy-load operation.

· Modular design: The workbench, slide, hydraulic system and other components can be customized to meet different mold and process requirements.

· Anti-eccentric load capacity: The four-column symmetrical structure disperses the force to avoid deformation caused by unilateral stress concentration.

2. Advanced hydraulic system

· Large flow pump group: Equipped with a double vane pump or plunger pump to ensure the continuous output of 2,000 tons of pressure.

· Energy-saving design: Reduce no-load energy consumption,

· Safety redundancy: overflow valve, pressure sensor, mechanical limit device triple overload protection to eliminate overpressure risks.

3. Intelligent control

· PLC+HMI control: Set parameters such as pressure, speed, and pressure holding time through the touch screen, and support storage and call of multiple sets of process programs.

· Real-time monitoring: Pressure curve display, fault self-diagnosis, and data recording functions to achieve visual management of the processing process.

Application:

Industry	Application Scenarios
Automotive	Body panel stamping, chassis structural parts forming, engine connecting rod forging
Aerospace	Titanium alloy frame hot pressing, composite material lamination, landing gear component forging
Heavy Machinery	Forging of large gear blanks, rolling of bearing rings, punching of mining equipment parts
New Energy	Wind turbine main shaft forging, photovoltaic bracket stamping, battery shell stretching

Specification:

Project		Unit	YD32-2000
Project		Unit	YD32-2000
Rated force		KN	20000
Knock out force		KN	2000
Slide stroke		mm	900
Knock out stroke		mm	300
Daylight opening height		mm	1600
Slide speed	Down	n/s	150
	Pressing	mm/s	4-10
	Return	mm/s	120
Knock out speed	Knock out	m/s	60
Knock out speed	return	n/s	120
Table area	L-R	mm	2000
Table area	F-B	mm	1800
Overall dimensions	L-R	mm	8000
	F-B	mm	2900
	Above ground height:H	nm	7660
Motor		KW	95
