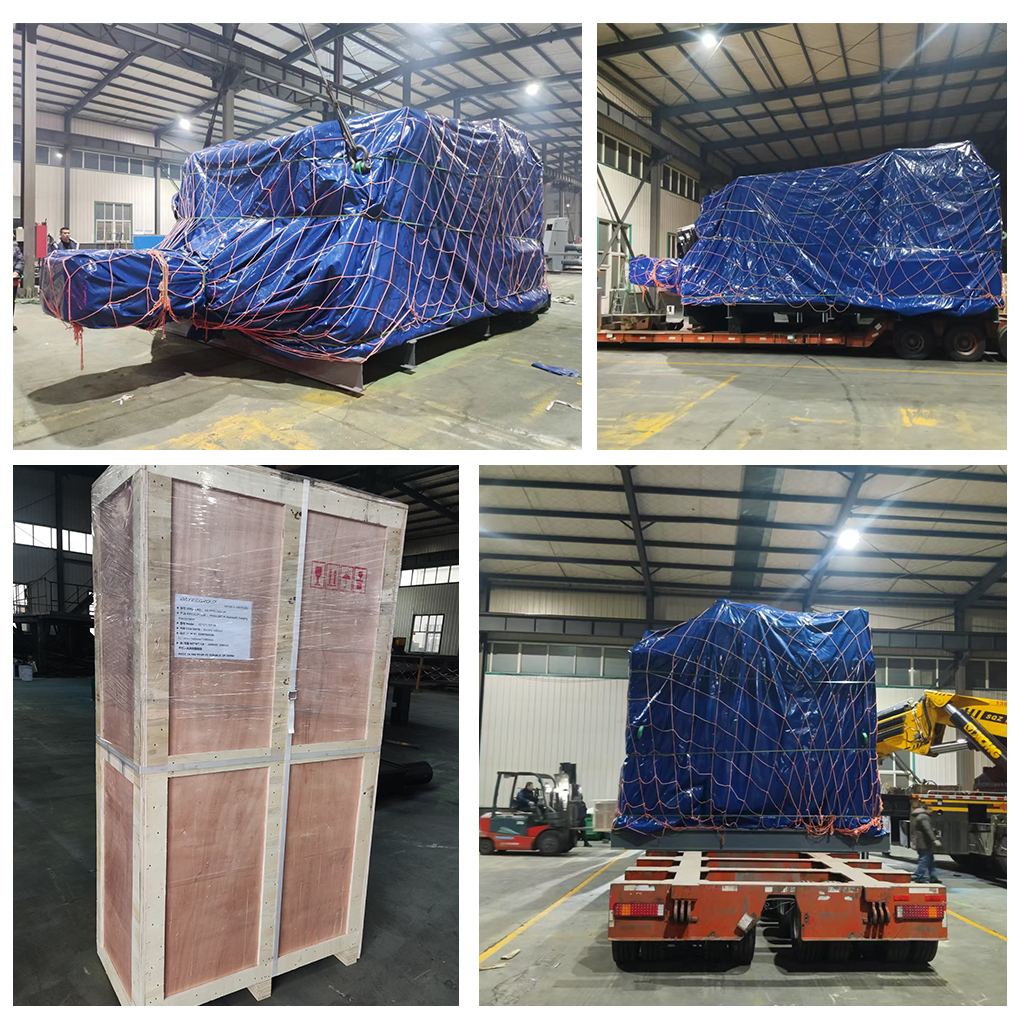

After several months of hard work, our Manipulator has finally been completed and sent to Europe.This is indeed an exciting moment when loading the car!
Here I am proud to share our products with everyone，our 10ton Manipulator:

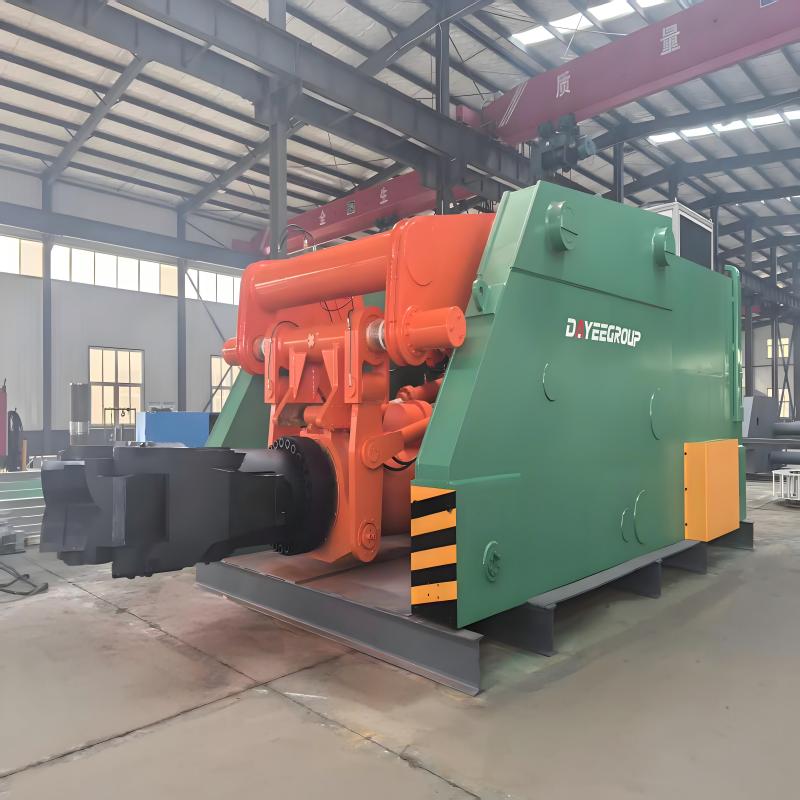

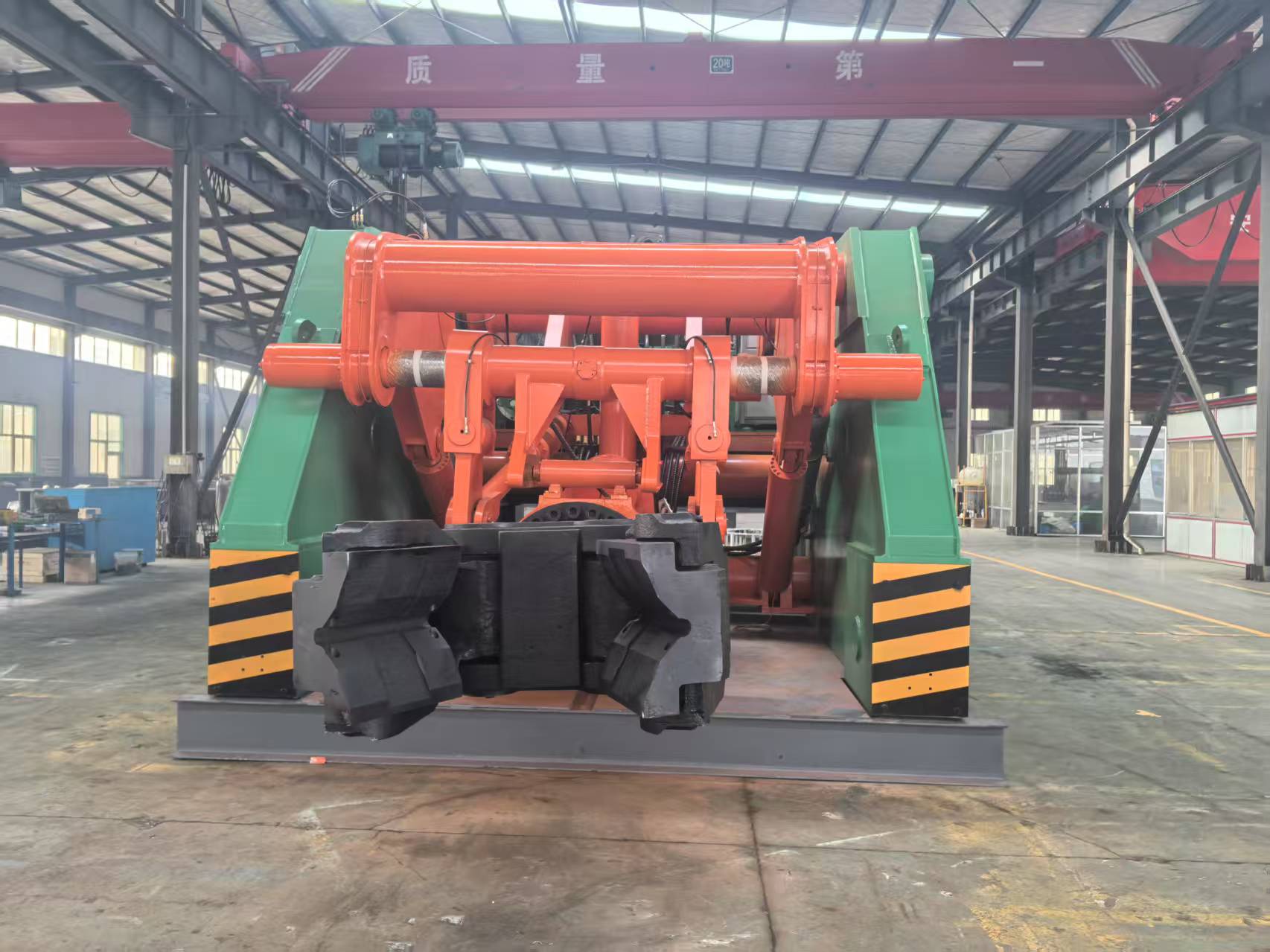

The 10-ton full hydraulic forging manipulator is the auxiliary equipment of hydraulic forging press. It is used to cooperate with the main machine to complete the free forging process of forgings of 10T and below, such as upsetting, drawing, punching, ring expanding and cutting. It is suitable for producing various free forging forgings such as long shafts, discs and rings, and has the advantages of high forging accuracy, fast frequency and low operating intensity of workers.
The 10T/30T.M full-hydraulic forging manipulator is driven by full hydraulic pressure, operating together with the press, and can realize linkage operation (manual control, automatic control and linkage control) with the press. Its structural form is designed as an integral wallboard structure, which can complete seven actions:
·Car body walking
·Clamp head rotating
·Clamp body lifting
·Clamp body pitching
·Clamp
·Clamp body translating (sideways)
·Clamp body swinging (sideways).
In addition, to adapt to the working condition of free forging, the forging manipulator also has the functions of jaw clamping and pressure maintaining, up and down-front and back-left and right buffering on the pliers body, automatic leveling and automatic centering of the pliers body, and can realize accurate positioning and free combination operation of each action.
Technical specification:
No. | Item | Unit | Parameter | Remarks |
1. | Nominal load | T | 10 | |
2. | Nominal clamping torque | T.M | 30 | |
3. | Gauge | mm | 3400 | |
4. | Rail surface elevation | mm | ±0 | |
5. | Jaw clamping range (round material) | mm | 100～1000 | |
6. | Maximum rotary diameter of clamp | mm | ~1600 | |
7. | Clamp rotation angle | ° | Anywhere 360 | |
8. | Clamp rotation speed | rpm | 0～18 | |
9. | Net extension of clamp (V-shaped jaw) |
mm |
2200 | Wheel center to front end of clamp |
10. | Minimum distance from the center line of the clamp rod to the rail surface | mm | ~700 | |
11. | Maximum distance from the center line of the clamp rod to the rail surface | mm | ~2100 | |
12 | Vertical parallel lifting stroke of clamp rod | mm | ~1400 | |
13 | Lifting speed of clamp rod | mm/s | 0～120 | |
14. | Upward angle of clamp rod | ° | 7 | |
15. | Angle of downward inclination of clamp rod |
° |
9 | Jaws tilt down to touch the ground |
16. | Walking speed of cart | m/min | 0～35 | |
17. | Working pressure/clamping pressure of hydraulic system | Mpa | 18/25 | |
18. | Power supply mode of cart | Steel towing chain | ||
19. | Main motor voltage | V | 380±10% | |
20. | Overall dimensions (length x width x height) | m | 8.8×4.4×4 | |
21. | Installation power of whole machine | KW | ~136 | |
22. | Hydraulic oil cooling mode | Fluorine cold |
