Introduction

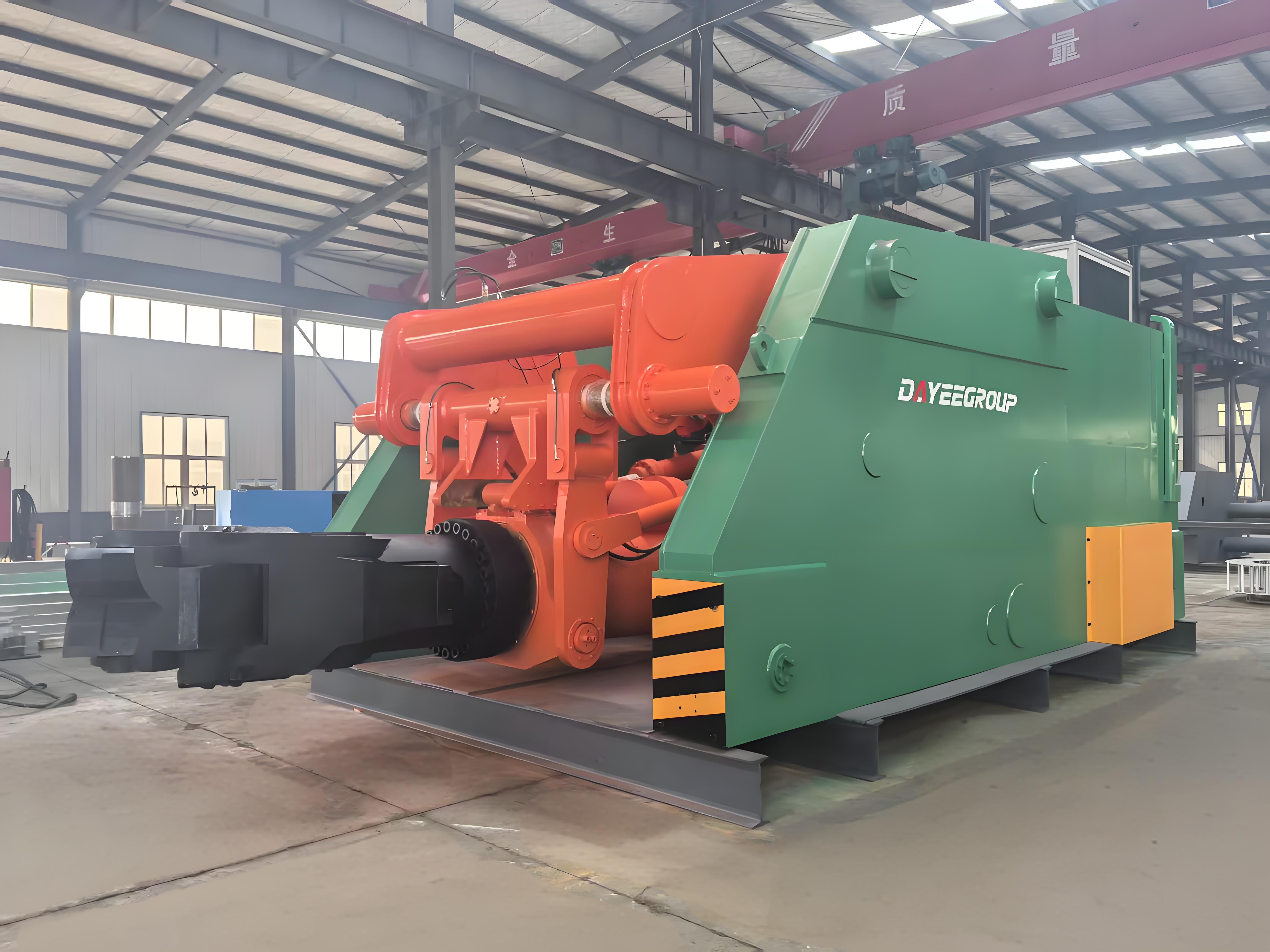

10T/30T.M fully hydraulic forging manipulator from Dayeepress produces supporting equipment for rapid forging hydraulic presses.
It is used to cooperate with the main machine to complete free forging processes such as upsetting, drawing, punching, ring expansion, cutting, etc. for forgings of 10T and below.
It is suitable for the production of various free forgings such as long shafts, discs and ringIt has the advantages of high forging precision, high frequency and low operating intensity.
Functions
10T/30T.M fully hydraulic forging manipulator adopts full hydraulic drive, operates on the same platform as the press, and is manually controlled. Its structural design is an integral wall plate structure, which can complete seven actions:
⑴ The vehicle body moves
⑵ The clamp head rotates
⑶ The clamp body rises and falls in parallel
⑷ The clamp body pitches
⑸ The clamp mouth is clamped
⑹ The clamp body moves horizontally
⑺ The clamp body swings left and right.
In addition, the equipment is suitable for free forging conditions. The forging manipulator also has the functions of jaw clamping and pressure maintenance, jaw body up and down, front and back, left and right buffering, and can realize accurate positioning and free combination operation of each action.
Technical Specifications
This machine is designed and manufactured according to the parameters and technical specifications of the rail-mounted fully hydraulic forging manipulator in the forging manipulator series:
No. | Item | Unit | Parameter | Remarks |
1. | Nominal load | T | 10 | |
2. | Nominal clamping torque | T.M | 30 | |
3. | Gauge | mm | 3400 | |
4. | Rail surface elevation | mm | ±0 | |
5. | Jaw clamping range (round material) | mm | 100～1000 | |
6. | Maximum rotary diameter of clamp | mm | ~1600 | |
7. | Clamp rotation angle | ° | Anywhere 360 | |
8. | Clamp rotation speed | rpm | 0～18 | |
9. | Net extension of clamp (V-shaped jaw) |
mm |
2200 | Wheel center to front end of clamp |
10. | Minimum distance from the center line of the clamp rod to the rail surface | mm | ~700 | |
11. | Maximum distance from the center line of the clamp rod to the rail surface | mm | ~2100 | |
12 | Vertical parallel lifting stroke of clamp rod | mm | ~1400 | |
13 | Lifting speed of clamp rod | mm/s | 0～120 | |
14. | Upward angle of clamp rod | ° | 7 | |
15. | Angle of downward inclination of clamp rod |
° |
9 | Jaws tilt down to touch the ground |
16. | Walking speed of cart | m/min | 0～35 | |
17. | Working pressure/clamping pressure of hydraulic system | Mpa | 18/25 | |
18. | Power supply mode of cart | Steel towing chain | ||
19. | Main motor voltage | V | 380±10% | |
20. | Overall dimensions (length x width x height) | m | 8.8×4.4×4 | |
21. | Installation power of whole machine | KW | ~136 | |
22. | Hydraulic oil cooling mode | Fluorine cold |
Equipment use conditions
Power supply: Three-phase four-wire system
Voltage: AC 380V±10%
Frequency: AC 50Hz±1%.
Working medium:
Anti wear hydraulic oil (model:ISO VG46),The cleanliness level is required to reach NAS8-9, and after filtration, it should reach NAS7-8.
Filtering accuracy: The filtering accuracy of the main oil circuit is 10 μ m.
Cooling water (if water cooling is used)
Water supply temperature: ≤32℃.
Water supply pressure: 0.3~0.4MPa
Pressure difference between inlet and return pipes: ≥0.2MPa
Water quality: clean water without suspended matter and corrosion (industrial fresh water). If river water is used, it must be filtered.
Environmental Temperature
Working environment temperature: -10~45 ℃
Gas
Industrial nitrogen, gas usage: The initial installation usage is 10 standard bottles (internal pressure ≥ 10MPa)
Delivery date and quality assurance policy:
Delivery time: 3-6 months.
Warranty period: 12 months
