Two column Hydraulic Forging Press

Cost-effective 36 MN hydraulic forging press Chinese Supplier

Max Feeding size:
Power:
Capacity:
Product description: 36 MN hydraulic forging press is suitable for forging and billet making of high-temperature alloys, titanium materials, Microalloyed steel, Ni-base alloys, carbon structural steel, alloy structural steel, carbon tool steel, alloy tool steel, bearing material, spring material , stainless steel.It could be used for upsetting, ring billet making processes. As well as all free forging processes such as elongation, bending, misalignment, chopping, and horse frame expansion forging process
INQUIRY EMAIL

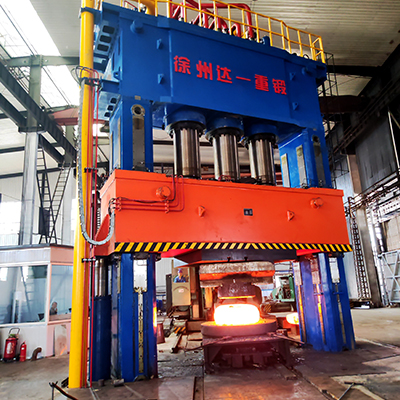

Two column 36 MN Hydraulic Forging Press

1. Description:

DYMGPRESS series 36 MN Hydraulic forging press unit complete set includes: the equipment provided should be a brand new complete set of equipment (including all mechanical parts, hydraulic parts, electrical parts and accessories, etc.), including the entire process of equipment design, manufacturing, transportation, installation, commissioning, assistance in trial production until normal production, as well as technical services (including operation, maintenance, repair and other technical training) and information provision.


2. Application:

This machine is a prestressed double-column frame forging hydraulic press, suitable for forging and blanking of carbon structural steel, alloy structural steel, carbon tool steel, alloy tool steel, bearing materials, spring materials, stainless steel, high-temperature alloys, titanium materials, nickel materials.

It can be used for upsetting, ring blank making processes.

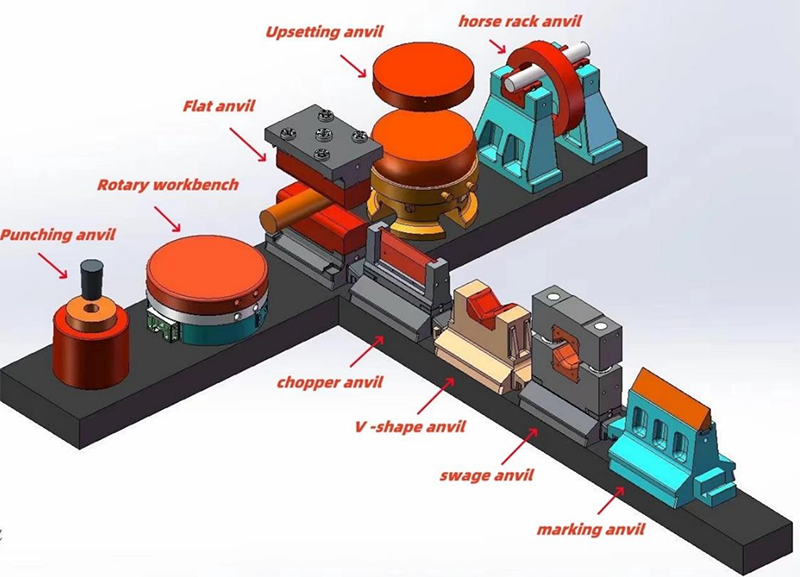

And all free forging processes such as elongation, bending, dislocation, chopping and horse frame expansion.

3. Specification:

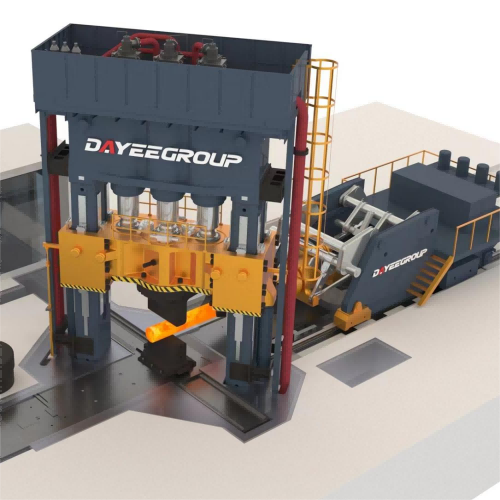

36MN hydraulic forging press equipped with 1 forging manipulator, designed for fast forging processes such as forging or grinding

High temperature alloys, titanium materials, microalloyed steels, nickel-based alloys, carbon structural steels, alloy structural steels, carbon tool steels, alloy tool steels, bearing materials, spring materials, stainless steel forging processes.

36MN Hydraulic Forging Press Main Technical Parameters
No.	Parameter	Units	Specification	Remark
1	Rated force	MN	36	Tertiary pressure
			24	Secondary pressure
			12	Primary pressure
2	The structure of the press	/	Prestressed frame with double columns upper pressing structure
3	Max opening height	mm	3600
4	Max slide stroke	mm	1800
5	Return force	MN	4
6	Space between two columns	mm	3300	Figure A
6	Space between two columns	mm	1500	Figure B
7	Moving workbench size	mm	6000*2000	LXW
8	Moving workbench stroke	mm	4000
9	Moving workbench speed	mm/s	0-250
10	Moving workbench load	t	≥100
11	Allowable load decentration	mm	Φ200
12	Drive type		Oil pump direct drive
13	Control form		Manual,semi-automatic,automatic,linkage
14	Circulating cooling system		Equipped	Water cooling cycle
15	Rated working pressure of hydraulic system	MPa	27.5
16	Maximum fast down speed	mm/s	≈250
17	Maximum return speed	mm/s	≈250
18	Forging control accurancy	mm	±1
19	Forging speed	mm/s	≈60	36MN
		mm/s	≈90	24MN
		mm/s	≈120	12MN
20	Automatic lubrication system		Equipped
21	Lateral moving anvil mechanism		Equipped
22	Height above the ground of the press	M	≤13
23	Hydraulic press main motor power	Kw	2600
Forging frequency
	Forging deformation(mm)	Return distance (mm)	Forging frequency
Fast forging	3-5	20-25	70-80
Normal forging	80-100	100-150	20-40
