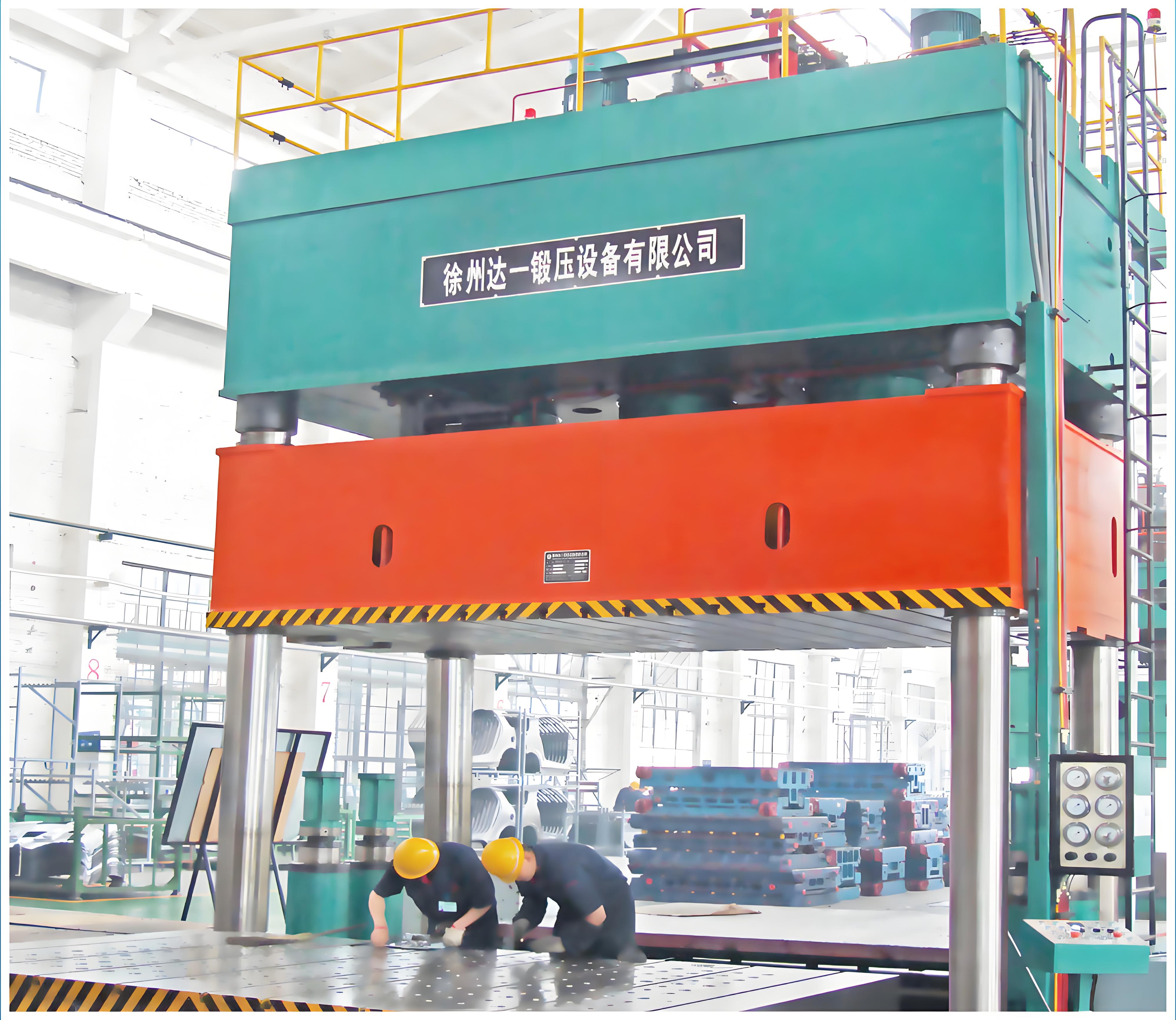

1250 ton single-action hydraulic drawing press for automotive components

The 1250 ton single-action hydraulic drawing press from Dayee press is a type of single action hydraulic deep drawing press for Automotive industry.Can be used for various stamping processes such as stretching, bending, forming, blanking, and flanging etc. With features such as precision control system, energy-saving operation, structural reliability, and user centered design, it has become the choice of many customers.

Applications:

For various stamping processes such as stretching, bending, forming, blanking, and flanging, especially suitable for the following fields:

 Automotive components: body coverings, brake pads, fuel tank, chassis, axle housing, bumper;

Household appliances: washing machines, rice cookers, televisions, refrigerators, air conditioners, etc;

Kitchen utensils: sinks, cookware, stainless steel utensils, various other containers

Others: Tractors, motorcycles, aerospace

Characters:

The four column structure is simple, economical, and practical;The frame structure has good rigidity, high precision, and strong resistance to eccentric loads;

The hydraulic control adopts an integrated system of integral plug-in valves, which reduces leakage points, ensures reliable operation, and has a strong service life;

The electrical system controlled by PLC has a compact structure, sensitive, reliable, and flexible operation;

The work pressure and stroke can be adjusted within the specified range according to the process requirements, and the operation is simple;

It has four operation modes: adjustment, manual, semi-automatic, and automatic (with feeding device) continuous operation;

By selecting through the operation panel, it is possible to achieve two molding processes: fixed stroke and fixed pressure, and the hydraulic pad can be used as an ejector, stretching pad, and non stretching ejector according to three process specifications.

Technical Specifications

Optional:

1. Mobile workbench

2. Punching buffer device

3. Optoelectronic protection device

4. Travel, pressure, speed digital display, CNC device

5. Heating and cooling device for hydraulic system

6. Material feeding device

7. PLC Programmable Logic Controller

8. Mold heating and temperature control device

9. Touch sensitive industrial display screen

10. Heating and cooling device for hydraulic system

Customization

Dayee single-action  hydraulic drawing press provides deep customization services.According to the actual working conditions of customers in different industries, the equipment tonnage (100-5000 tons), workbench size, and control system configuration can be flexibly adjusted.

Based on a 20-year industry database, the technical team can complete customized solution design within 7 working days, ensuring comprehensive adaptation from equipment parameters to security protection.

At present, this service has been applied in many segmented scenarios, helping customers reduce production line renovation investment and shorten the development cycle of new processes.
