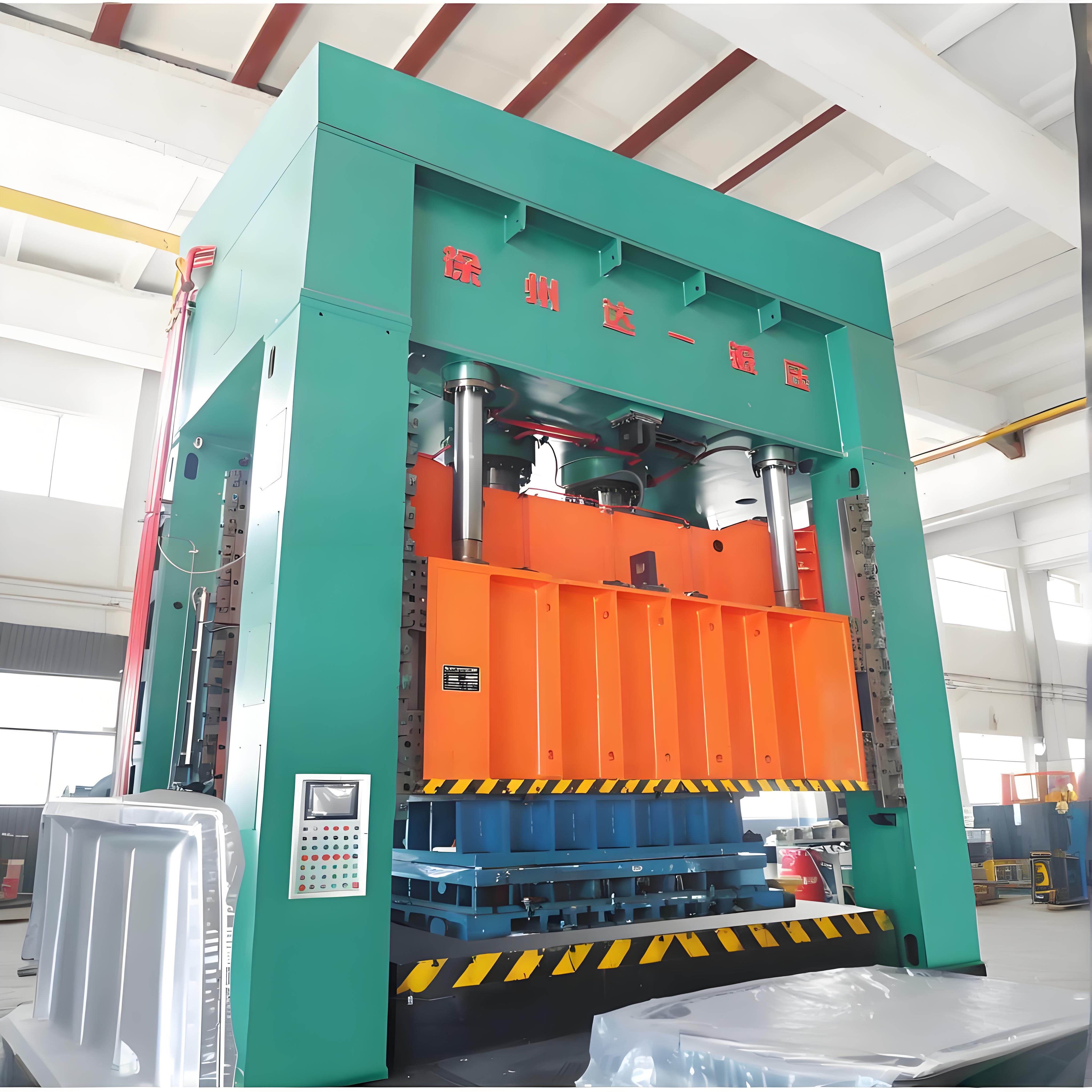

1250 ton double-action hydraulic drawing press for vehicle bodywork and stamping parts

The 1250 ton frame type double-action hydraulic drawing press produced by Dayee Press is a hydraulic press used in the automotive industry.Can be used for various stamping processes such as stretching, bending, forming, cutting, and flanging.With its precision control system, energy-saving operation, structural reliability, and user centered design, it has become the choice of many customers.

Application

Suitable for all deep and shallow stretching processes, and can also be used for bending, flanging, blanking and other processes. Especially suitable for the following fields: large automobiles, agricultural vehicle covers and other parts;

Containers: stainless steel, aluminum, enamel baths, pressure vessels, stainless steel sinks;

Tractors, motorcycles, aviation and other fields.

Characteristics

1. The four-column structure is simple, economical and practical; the frame structure has good rigidity, high precision and strong anti-eccentric load capacity;

2. The hydraulic control adopts an integral cartridge valve integrated system, which reduces leakage points, reliable operation and long service life;

3. Automatic lubrication device for guide rails;

4. The electrical system controlled by PLC has a compact structure, sensitive, reliable and flexible operation;

5. The working pressure and stroke can be adjusted according to the process requirements within the specified range, and the operation is simple;

6. It can realize two molding processes of fixed pressure and fixed stroke, with pressure holding delay function, and the delay time is adjustable;

7. The stretching and edge pressing sliders can be connected as a whole through positioning pins and pull rods to realize single-action process actions;

8. It adopts button centralized control, with three operation modes: adjustment, manual and semi-automatic.

Specification

Customization

Dayee frame type double-action  hydraulic drawing press provides deep customization services.According to the actual working conditions of customers in different industries, the equipment tonnage (315-2500 tons), workbench size, and control system configuration can be flexibly adjusted.

Based on a 20-year industry database, the technical team can complete customized solution design within 7 working days, ensuring comprehensive adaptation from equipment parameters to security protection.

At present, this service has been applied in many segmented scenarios, helping customers reduce production line renovation investment and shorten the development cycle of new processes.
