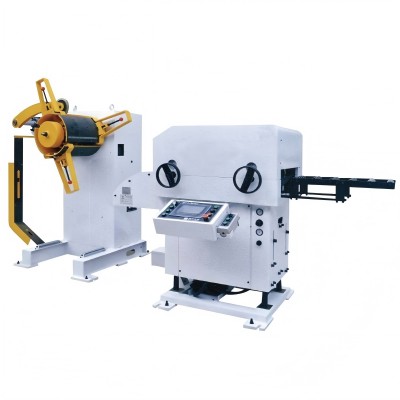

NLF1 Three-machine integrated servo rack leveling feeder

1.Introduction

Dayeepress Three-machine integrated servo rack leveling feeder is a highly integrated automated production equipment that integrates the functions of the material rack, leveling machine, and servo feeding machine into one.Thickness 0.3~3.2mm,Specialized for medium and thin plates.

2.Application

Widely used in fields such as metal processing, plastic processing, and electronic manufacturing.In the field of metal processing, equipment can be used for leveling and feeding metal sheets, providing high-quality raw materials for subsequent stamping, shearing and other processes;In the field of plastic processing, equipment can be used for leveling and feeding plastic sheets, providing stable raw material supply for subsequent molding, cutting and other processes;In the field of electronic manufacturing, equipment can be used for leveling and feeding electronic components, providing precise raw materials for subsequent assembly, testing, and other processes.

3.Features

11 flattening rollers are used to effectively improve the calmness of the material.

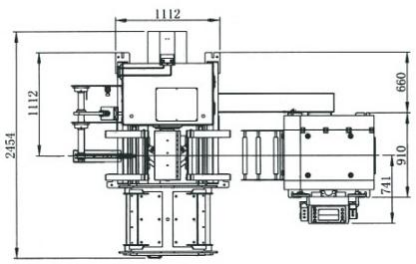

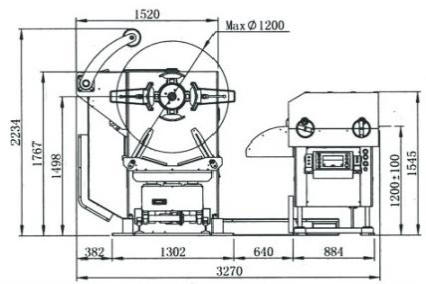

4.Dimensions

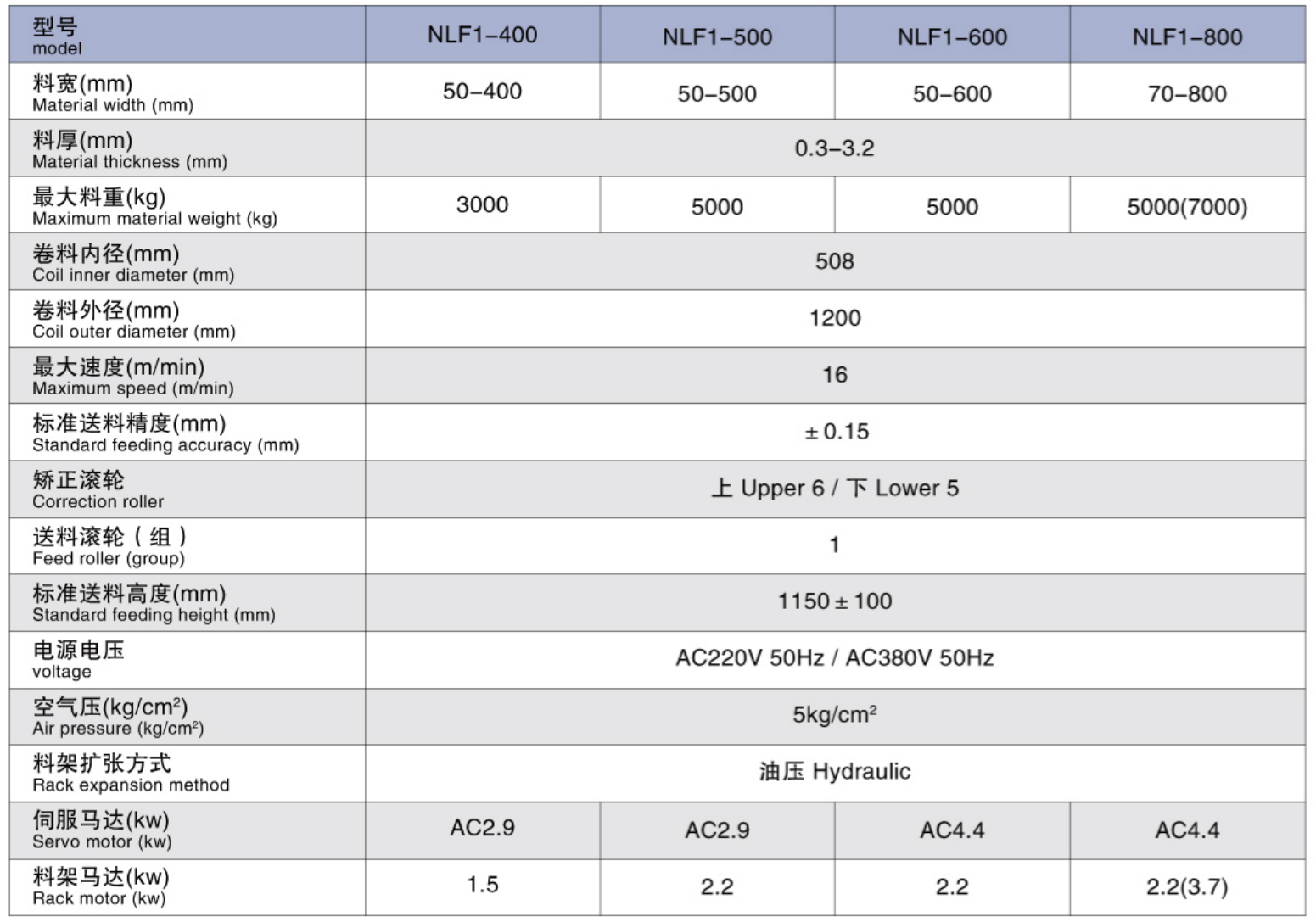

5.Technical specifications

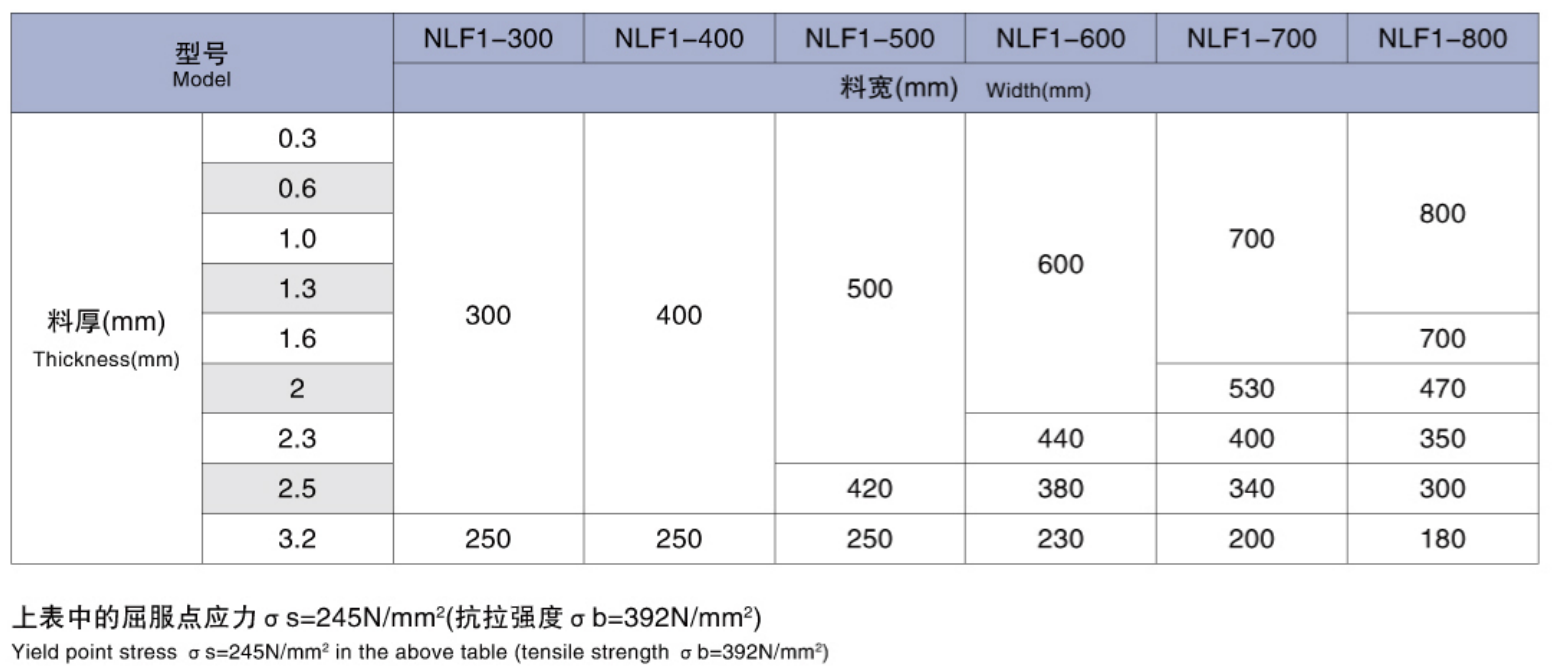

6.Corrective ability table
