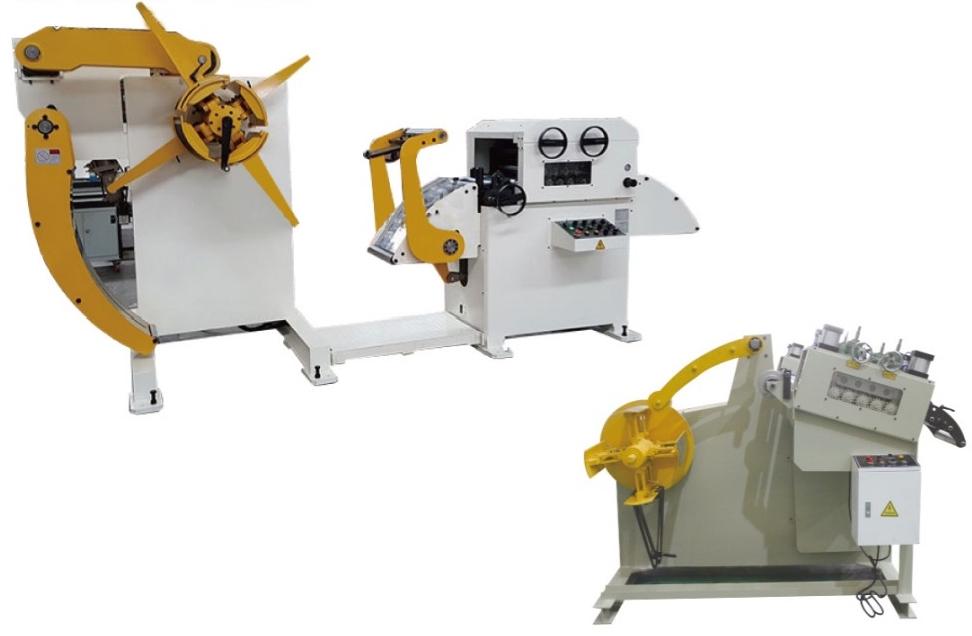

ML Two-in-one thick plate racking machine

1.Introduction

Dayeepress Two-in-one thick plate racking machine is a specialized equipment used for unwinding and leveling thick metal coils.It mainly consists of a material rack section and a leveling section.The material rack adopts a vertical expansion and contraction drum, which is driven by a motor to rotate and achieve the unwinding action of the metal coil material.The leveling part uses a misaligned leveling roller to remove the internal stress of the material through multiple roller presses, achieving the purpose of leveling.

This type is for Thickness 1.0~6.0mm

2.Application

The Two-in-one thick plate racking machine is widely used in the metal processing and manufacturing industry, especially in situations where thick metal coils need to be processed.For example, in the production lines of punching machines, shearing machines, laser cutting machines, cold bending machines and other equipment, the Two-in-one thick plate racking machine can provide flat metal sheets, ensuring the quality and accuracy of subsequent processing.In addition, it can also be used in the pretreatment process of metal coil materials, providing critical preparation for the production line.

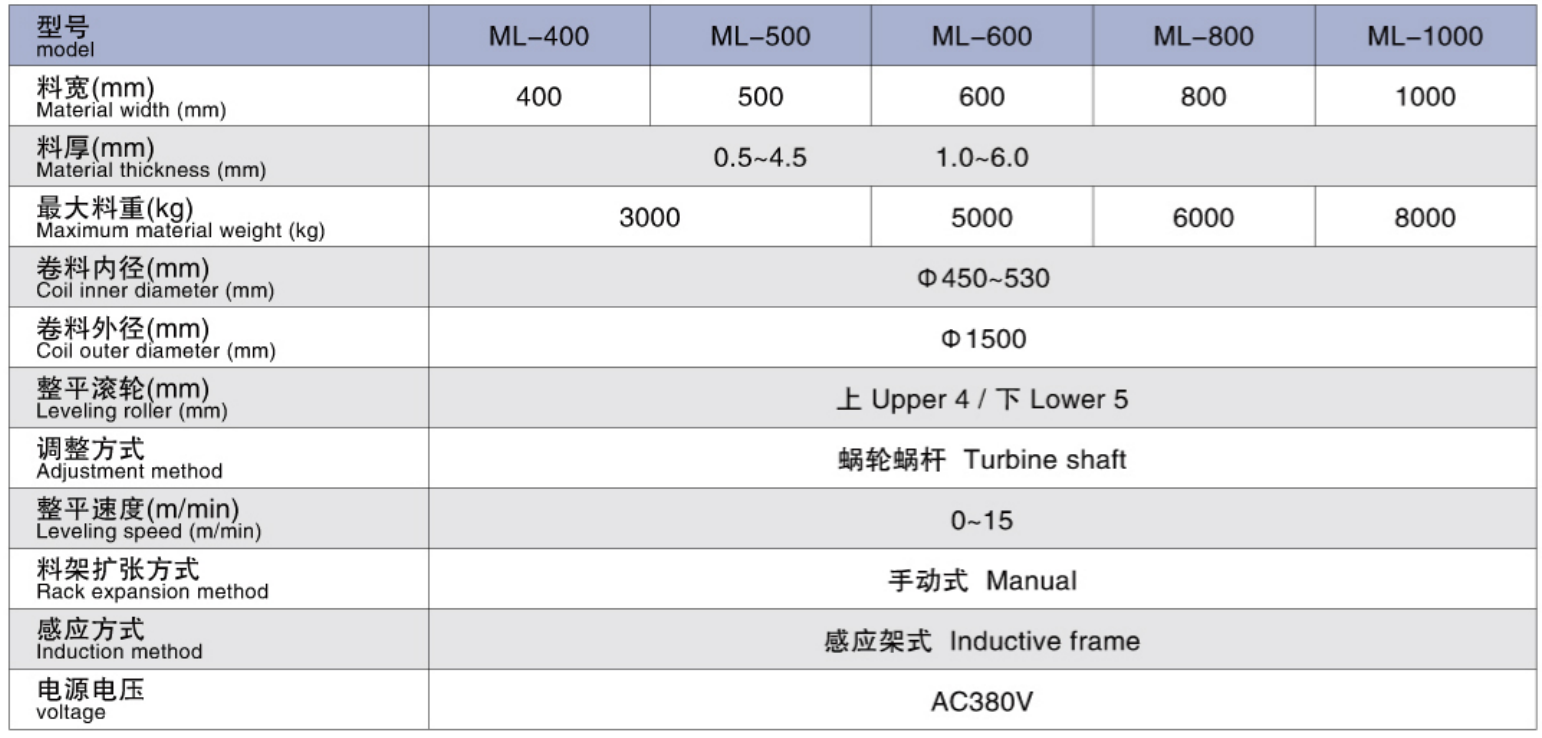

3.Technical parameters

4.Customization

Personalized customization can be carried out according to customer needs.
