NCPB Partial three-in-one

1.Introduction

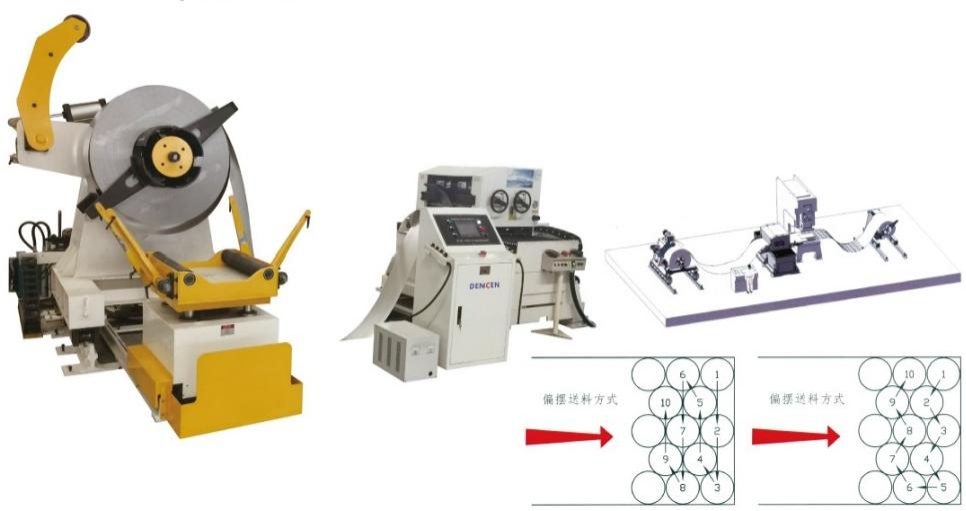

The Partial three-in-one of Dayee mainly consists of an unwinding section, a leveling section, and a feeding section.These parts work together to achieve full automation processing from raw material uncoiling, leveling to feeding.

  Uncoiling section: responsible for feeding and uncoiling aluminum or other metal sheets.Through precise mechanical structures and control systems, ensure that raw materials can smoothly and continuously enter the next process.

  Leveling section: Flatten the metal sheet after unwinding.By precise adjustment of multiple leveling rollers, defects such as bending and waves in the board are eliminated to achieve the desired flatness.

  Feeding section: Accurately deliver the leveled metal sheet to the designated position of the stamping machine.

2.Application

Widely used in metal sheet stamping production lines in automotive manufacturing, aerospace, mechanical manufacturing and other fields.It can efficiently process metal sheets of various specifications, providing high-quality raw materials for subsequent stamping, shearing and other processes.Especially in the field of new energy vehicle battery manufacturing, it has become one of the key equipment used for producing components such as battery aluminum shells.

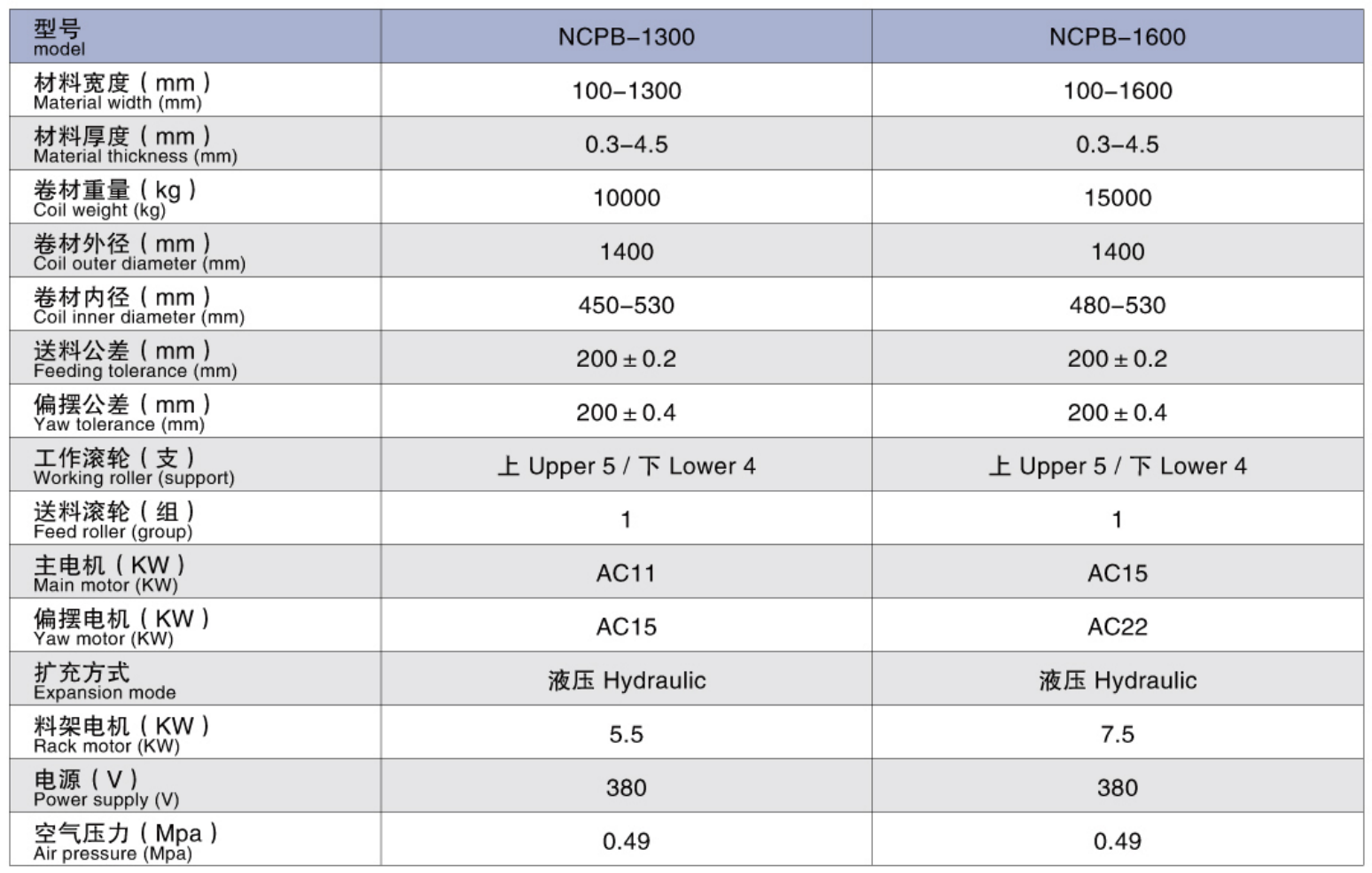

3.Parameters

4.Customization

Personalized customization can be carried out according to customer needs.
