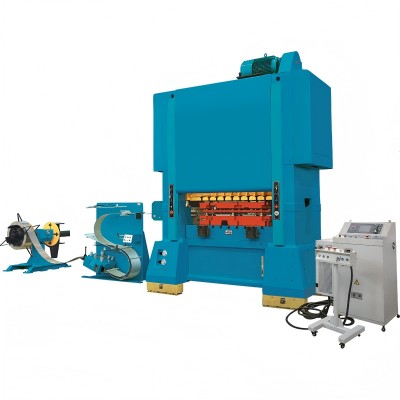

RH Series Punching line of straight side high-speed double-crark precision press

1.Introduction

Dayeepress RH Series Punching line of straight side high-speed double-crark precision press is an efficient and accurate metal sheet processing production line, mainly used for stamping and forming various metal materials.

2.Application

This line is widely used in stamping and forming processes in industries such as automobiles, home appliances, and hardware products.

It can perform stamping operations on various metal materials, such as stamping parts, making metal products, etc.Through precise control of the mold, efficient and accurate stamping production can be achieved, ensuring the dimensional accuracy and quality stability of the product.At the same time, this stamping line is also suitable for processing high-strength and high hardness metal sheets, such as stainless steel, aluminum alloys, etc.

3.Main performance and characteristics:

●Two-stage split combined high strength cast iron body; highstrength rod, nut preload body to dynamic and static accuracy  and stability;

●Eccentric high strength alloy steel crankshaft; Crankshaft bearings imported four-point support (80-300T);

●Slider gapless large ball bearing guide pin guide sleeve structure  (80-300T);

●Excellent balancing design, vibration and noise to a minimum, ensure die life; Large torque low inertia clutch pneumatic brake;

●Hydraulic adjustment screw locking to ensure that the lower dead point accuracy;

●Forced lubrication, temperature-controlled system, thermal compensation technique precise control lower dead point accuracy;

●Programmable cam controller; Integrated touchscreen control interface.

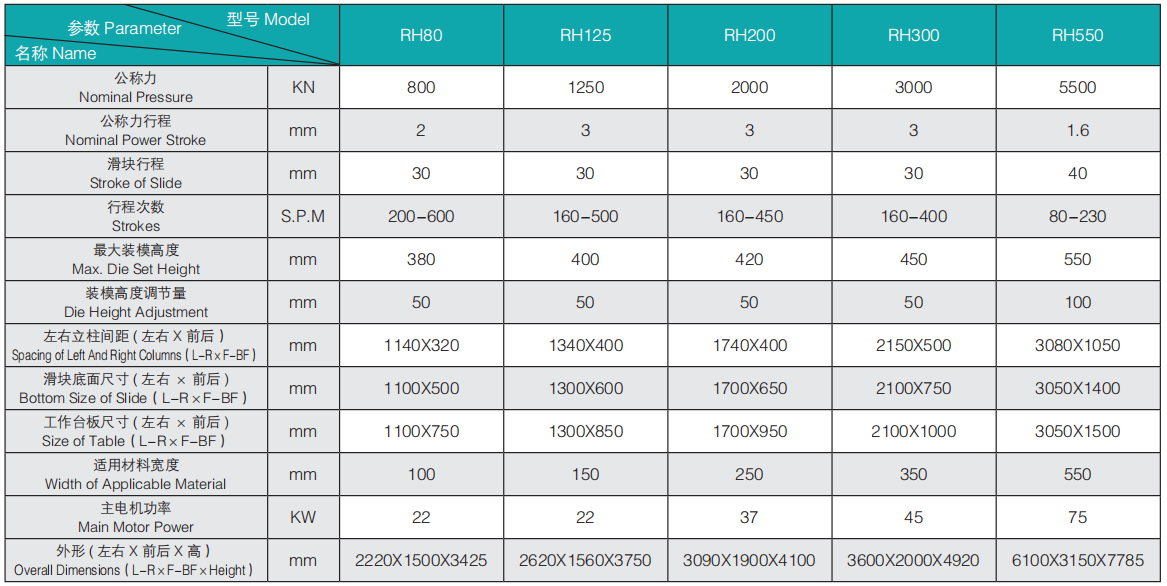

4.Techinical parameters

5.Customization

Personalized customization can be carried out according to customer needs.
