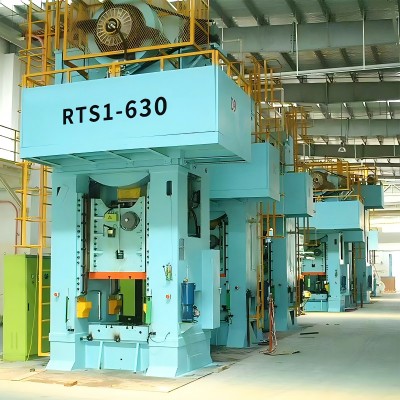

RTS1 Series Large stroke Closed precision single-point press

1.Introduction

Dayeepress RTS1 Series Large stroke Closed precision single-point press is a large stroke closed single point press is a specific type of metal processing equipment.Due to the large stroke characteristic of the equipment, it can perform deeper stamping operations.

2.Application

Widely used in various metal processing industries, such as automobile manufacturing, aerospace, mechanical manufacturing, and other fields.It can perform various stamping operations, such as stamping forming of metal sheets, stamping processing of parts, etc.Especially in scenarios where large-sized workpieces need to be processed or deep stamping operations need to be carried out, large stroke closed single point presses have significant advantages.

3.Main performance and characteristics:

●Closed welded body, high rigidity, high precision;

●Slider eight surfaces oriented, guide rail is long, and the precision is good;

●Dry clutch, sensitive response, safe and reliable, easy maintenance;

●Hydraulic overload protection device, overload automatic emergency stop, protect press machine and die safety;

●Thin oil automatic lubricating system with oil circuit alarm function;

●Electric adjustment height of the loading mode, the digital display device, it is convenient to adjust die;

●PLC control, with emergency stop, adjusting microinching, once, continuous operation;

●The optional device includes uncoiling, leveling, feeding and others, to achieve automatic production.

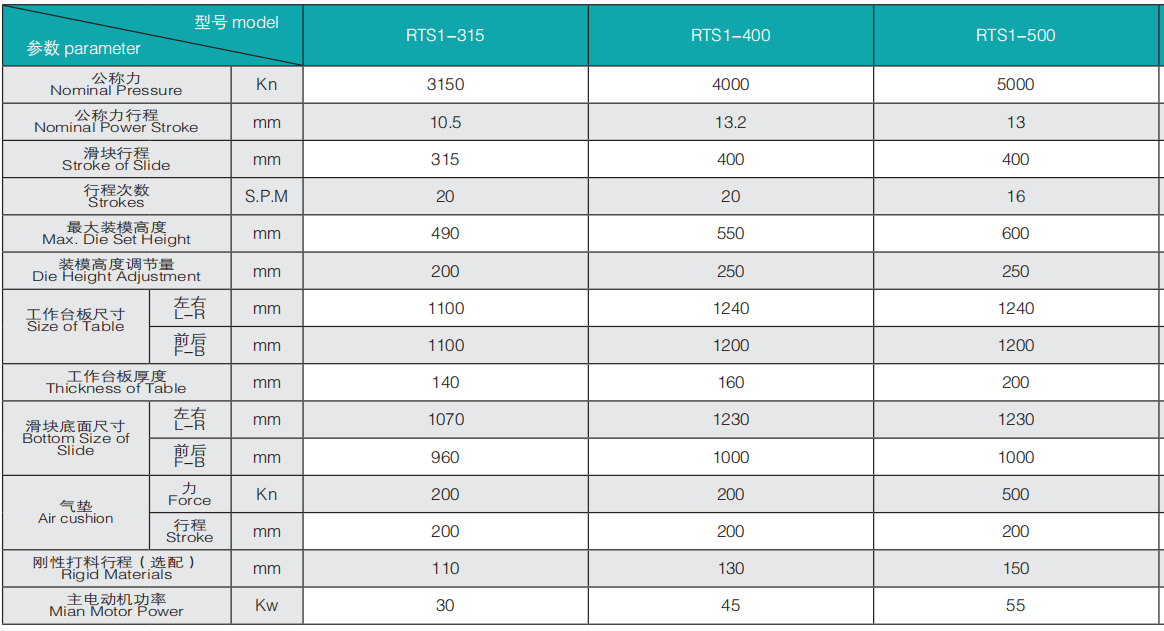

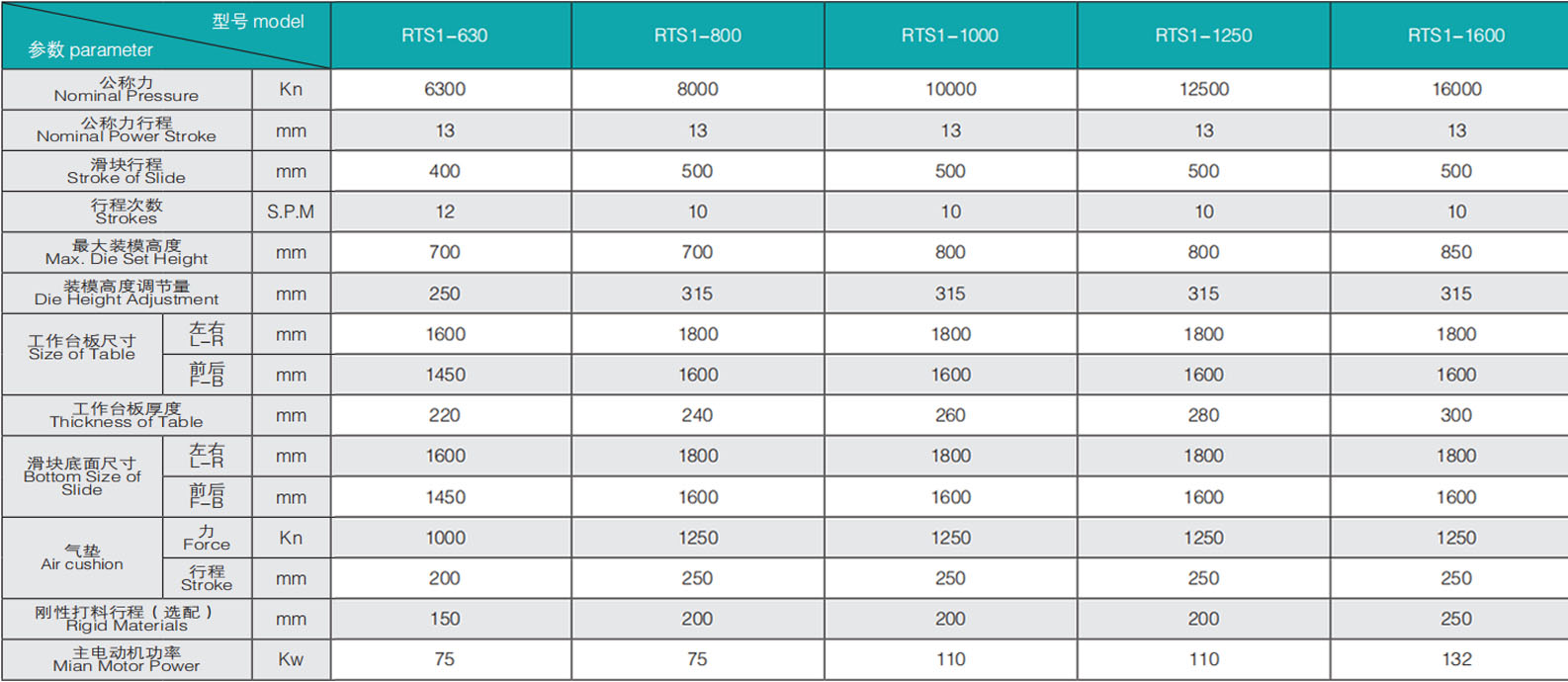

4.Techinical parameters

5.Customization

Personalized customization can be carried out according to customer needs.
