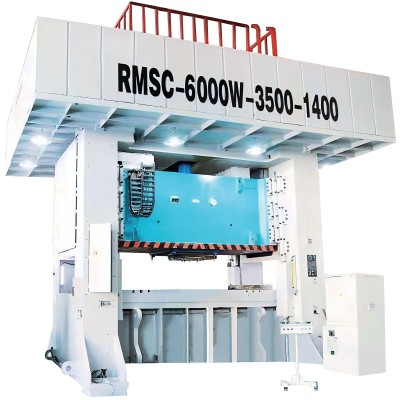

RMSC-W Series Closed precision integral double - point multi - station press

1.Introduction

Dayeepress RMSC-W Series Closed precision integral double - point multi - station press is a press machine with a steel plate welded combination structure, which is pre tightened by tightening bolts to form a whole. It has two symmetrically arranged pressure points and can perform machining operations on multiple workstations. The crossbeam, left and right columns, and base of this press are precision machined and assembled to form a rigid and high-precision overall structure.

2. Main performance and characteristics:

●Closed high rigidity machine body design, the use of high quality steel plate welding, after the elimination  of internal stress processing, the accuracy of the stability and reliability of high machine stiffness up to  1/10000;

●High alloy steel, double eccentric shaft, ratio between center distance of machine tool connecting rod and  bottom surface of slider is up to 0.7, the overall anti-bias load capacity of machine tool is strong;

●Welding gear, high precision machining, low noise, low comprehensive clearance;

●Sliding block full travel guide structure, the sliding block in the whole operation process are wrapped in the body guide rail, effectively ensure the accuracy of the machine;

●Adopt the structure of braking motor acceleration and reduction box to adjust the mold, which can deliver large torque and smooth transmission;

●Eccentric shaft, gear set, connecting rod and other parts, after hard oxidation and grinding processing, with high comprehensive performance and durability;

●Circulating electric thin oil lubrication system, convenient and accurate oil supply, with oil alarm function, to ensure the smooth operation of the machine;

●The structural design of the whole machine is reasonable, so as to be convenient for realizing the automatic production, reduce the cost, and improve the efficiency;

●The advanced design philosophy is provided, the noise is low, the consumption is low, and the energy is saved.

3.Technical parameters

4.Customization

Personalized customization can be carried out according to customer needs.
