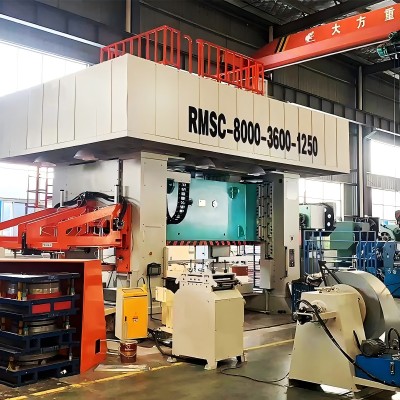

RMSC Series Closed precision split double point multi - position press

1.Introduction

Dayeepress RMSC Series Closed precision split double point multi - position press is an efficient and precise metal sheet processing equipment.The fuselage adopts a split structure design, which is characterized by the fact that various parts of the fuselage (such as beams, columns, bases, etc.) may be assembled together through precision machining rather than welding as a whole.This design makes the equipment easy to transport, install, and maintain while maintaining high precision.At the same time, the device has two symmetrically arranged pressure points, which can perform processing operations at multiple workstations and improve production efficiency.

2. Main performance and characteristics:

 ●Beam, column, base, welding with high quality steel plate, after the elimination of internal stress processing, the machine precision stability and reliability is high, tension  screw preload, the machine stiffness reached 1/10000;

 ●High alloy steel, double eccentric shaft, ratio between center distance of machine tool connecting rod and bottom surface of slider is up to 0.7, the overall anti-bias load  capacity of machine tool is strong.

 ●Welding gear, high precision machining, low noise, low comprehensive clearance;

 ●Sliding block full travel guide structure, the sliding block in the whole operation process are wrapped in the body guide rail, effectively ensure the accuracy of the machine;

 ●Adopt the structure of braking motor acceleration and reduction box to adjust the mold, which can deliver large torque and smooth transmission.

 ●Eccentric shaft, gear set, connecting rod and other parts, after hard oxidation and grinding processing, with high comprehensive performance and durability;

 ●Circulating electric thin oil lubrication system, convenient and accurate oil supply, with oil alarm function, to ensure the smooth operation of the machine;

 ●The structural design of the whole machine is reasonable, so as to be convenient for realizing the automatic production, reduce the cost, and improve the efficiency;

 ●The advanced design philosophy is provided, the noise is low, the consumption is low, and the energy is saved.

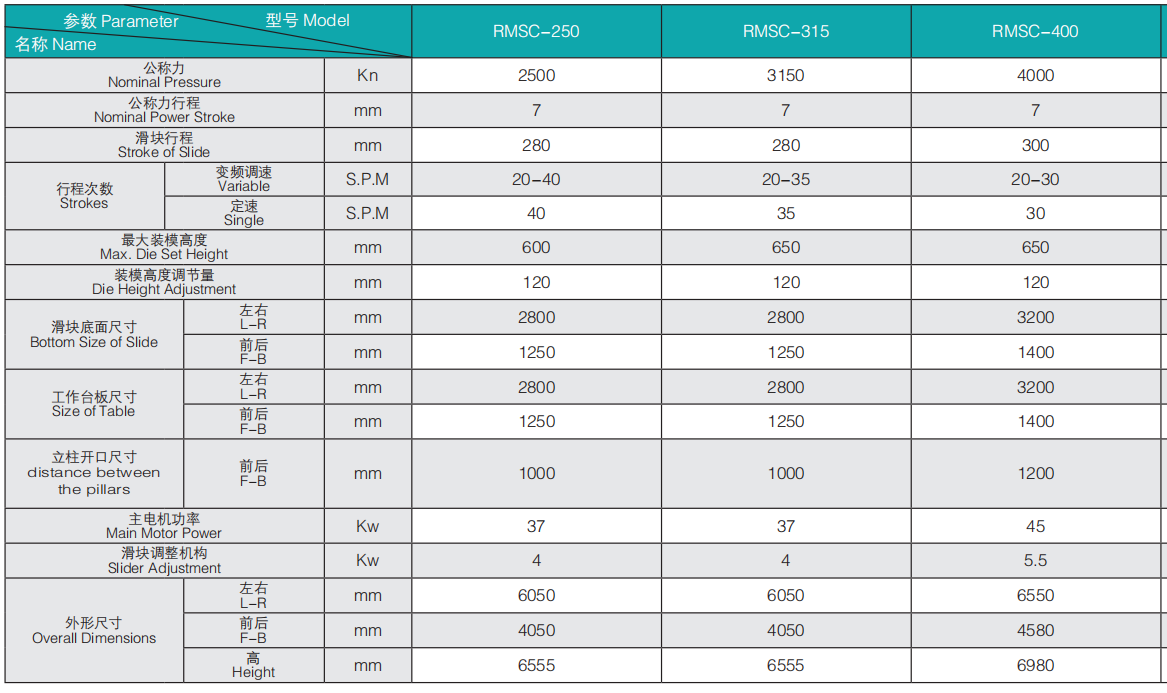

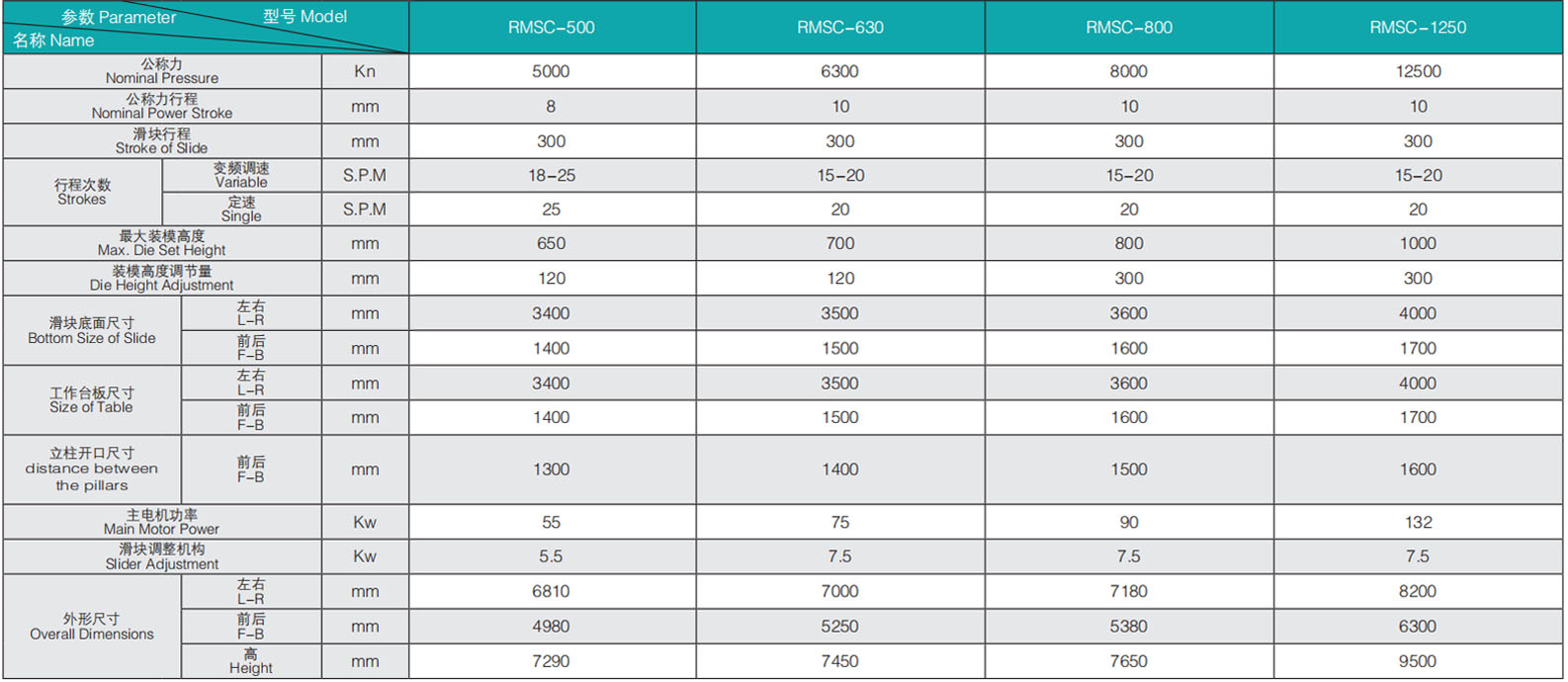

3.Technical parameters

4.Customization

Personalized customization can be carried out according to customer needs.
