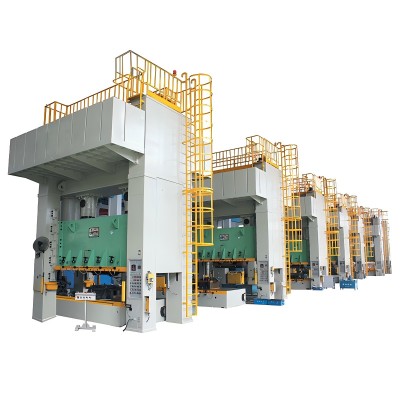

RTS2 Series Straight Side Double-Crank Press

1.Introduction

Dayeepress RTS2 Series Straight Side Double-Crank Press is a type of metal sheet processing equipment.It mainly consists of the body, slider, transmission system, control system, and other parts.The fuselage usually adopts a steel plate welded combination structure, which is pre tightened by tightening bolts to form a whole, with high rigidity and accuracy.

2.Appliaction

Widely used in stamping and forming processes in industries such as automobiles, home appliances, and hardware products.It can perform stamping operations on various metal materials, such as stamping parts, making metal products, etc.Through precise control of the mold, efficient and accurate stamping production can be achieved, ensuring the dimensional accuracy and quality stability of the product.

3.Main performance and characteristics:

●Beam, column, base fission closed structure body;

●Eccentric gear structure, large Slider stroke;

●Slide eight surface oriented, guide rail length, to ensure the accuracy of the operation;

●Dry pneumatic friction clutch, low noise, large clutch torque, small braking angle, easy maintenance;

●Hydraulic overload protection device, overload automatic emergency stop, protect press machine and die safety;

●Thin oil automatic lubricating system with oil circuit alarm function；

●PLC electric centralized control, with emergency stop, adjusting microinching, once, continuous operation;

●It can be equipped with tonnage meter, automatic feeding, air cushion (air cushion can increase the function of stroke adjustment, locking and so on),travelling table, temperature sensor and other devices;

●It can increase the function of pressure, the height of loading mode automatic adjustment.

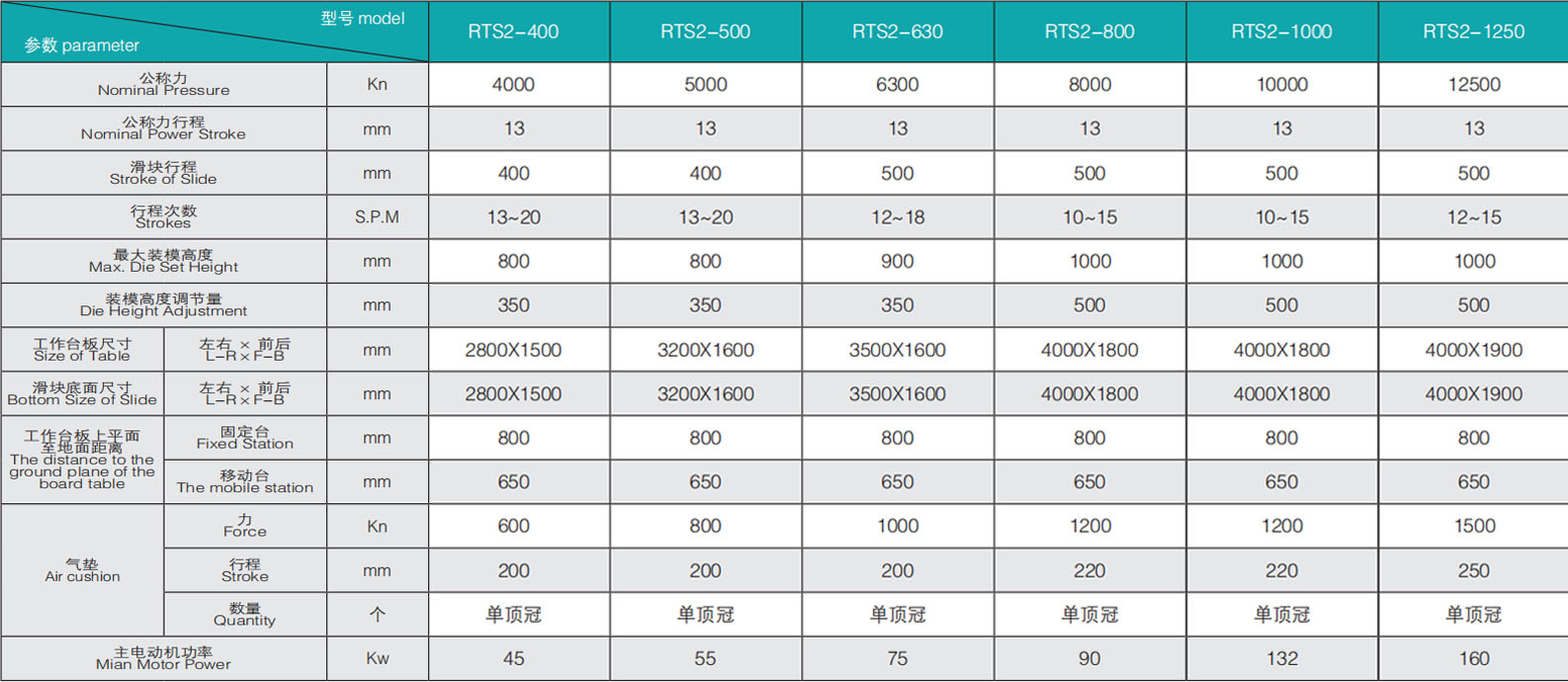

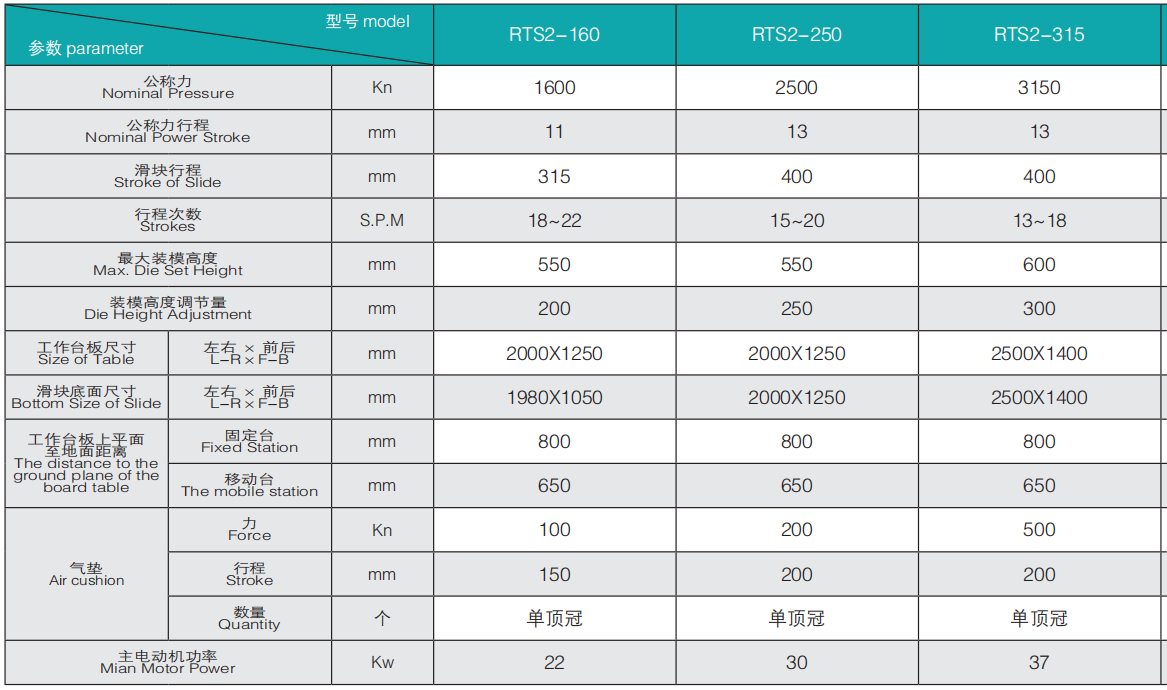

4.Technical parameters

5.Customization

Personalized customization can be carried out according to customer needs.
