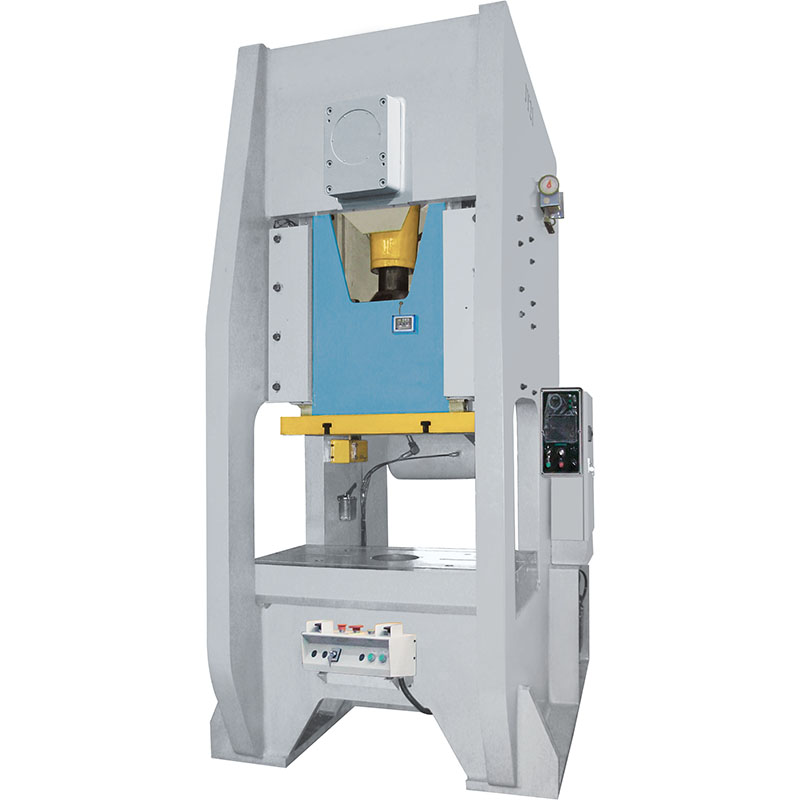

RY1 Series D-Frame precision single-point press

1.Introduction

Dayeepress RY1 Series D-Frame precision single-point press.This precision machines have tonnage range from 45ton to 400ton.The D-frame straight side greatly reduces the angular deflection of a typical C-frame design, making it particularly suitable for jobs requiring higher accuracy parts and close tolerance tooling.

2.Main performance and characteristics:

·Semi-closed high-rigidity body design, high quality steel welding, after the elimination of internal stress process, machine precision stability and reliability higher than the open fuselage;

·High-precision machining, low noise, low comprehensive gap;

·Slider symmetrical six-sided long guide rail, high precision and smooth operation;

·Die height adjustment is precise, safe, convenient, and reliable;

·Crankshafts, gears, connecting rods and other parts, and after a hard oxide grinding process, has a very high overall performance and durability;

·A highly sensitive and reliable clutch - brakes and imported double-solenoid valves, hydraulic overload protection device to ensure the operation of the press ram and stopping accuracy and security;

·Thick oil automatic lubrication system, convenient, accurate oil with oil alarm function, to ensure the smooth operation of the machine;

·Whole structure, reasonable design, easy to automate production, reduce costs and improve efficiency;

·Advanced design concepts, low noise, low consumption, energy saving.

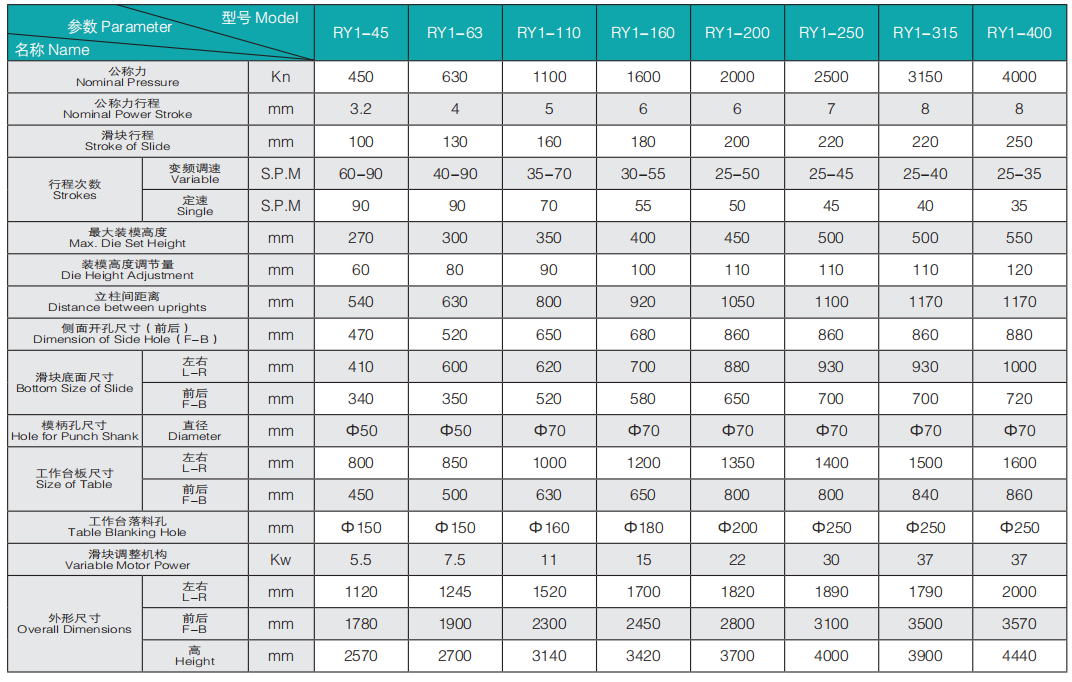

3. Technical Parameter

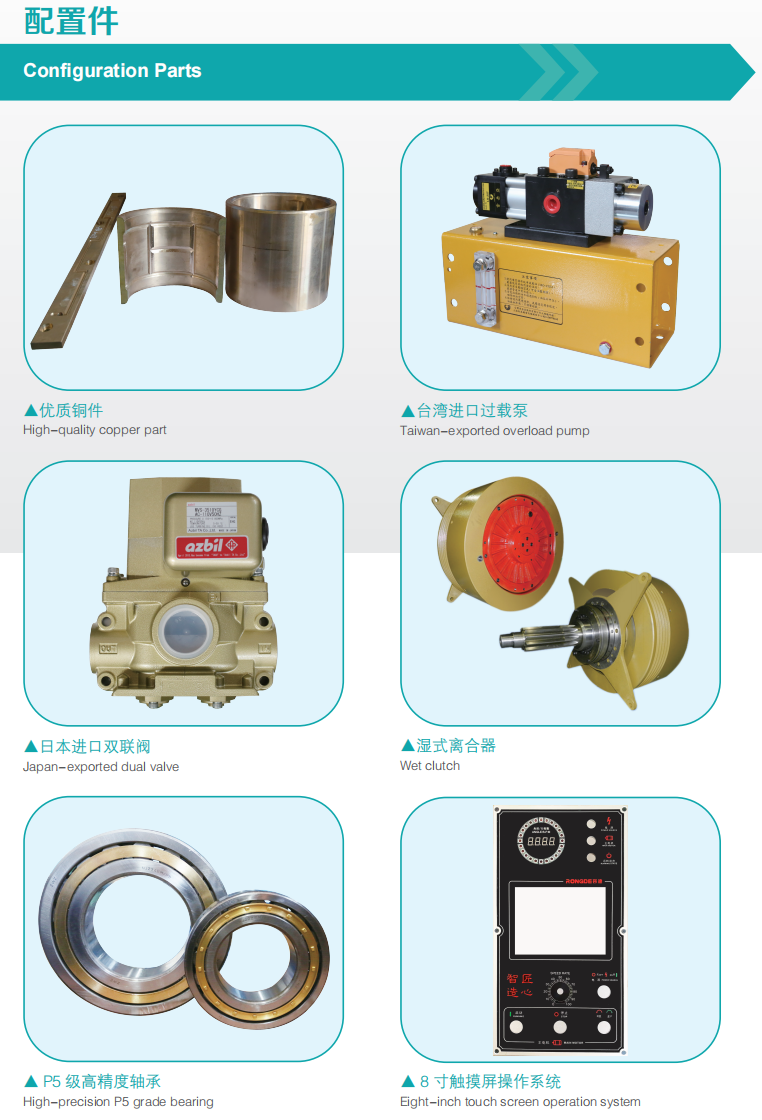

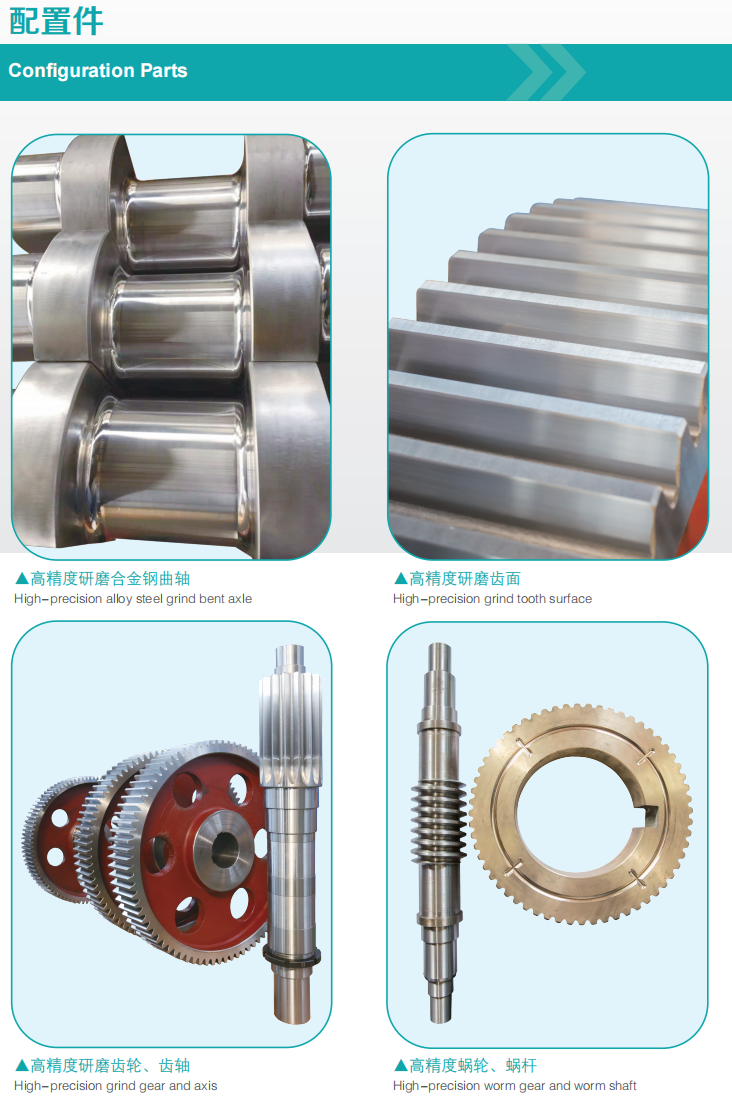

4. Configuration parts

5.Customization

Personalized customization can be carried out according to customer needs.
