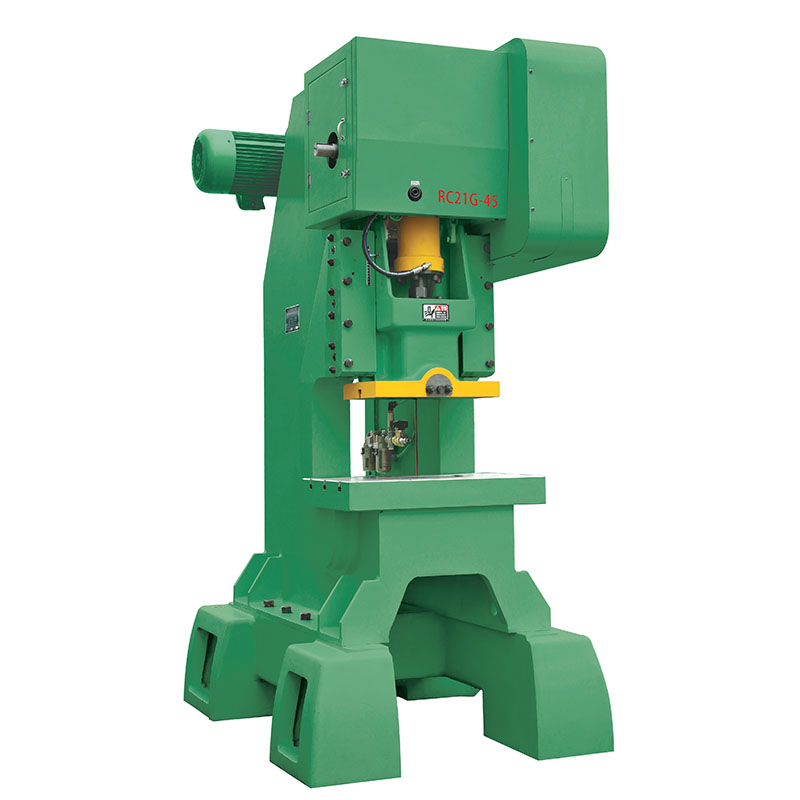

RC21G Series C-type Frame High-speed Press

1.Introduction

The RC21G Series C-Frame High Speed Presses are standard bench-top C-frame presses. Commonly referred to as "C" frame hydraulic presses, these compact hydraulic presses are available in standard model configurations from 16 tons to 60 tons. These machines can be equipped with tool mounting plates or easily customized to your application. They are designed to be mounted on a separate stand or table. Standard features include a fully removable power pack, a rugged prefabricated steel frame, and a reliable hydraulic system. These stand-alone hydraulic presses are suitable for a variety of operations including assembly, blanking, coining, forming, punching, riveting, and staking.

2.Main performance and characteristics:

●Steel-welded frame and High rigidity cast-iron base；

●Low vibration，low noise and High accuracy；

●Air bag Balance device,to balance the crank and vibration during working;

●Hydraulic locking device for adjustment rods,ensuring the precision of Bottom dead center;

●Automatic oil cycle lubrication system;

●PLC,encoder.

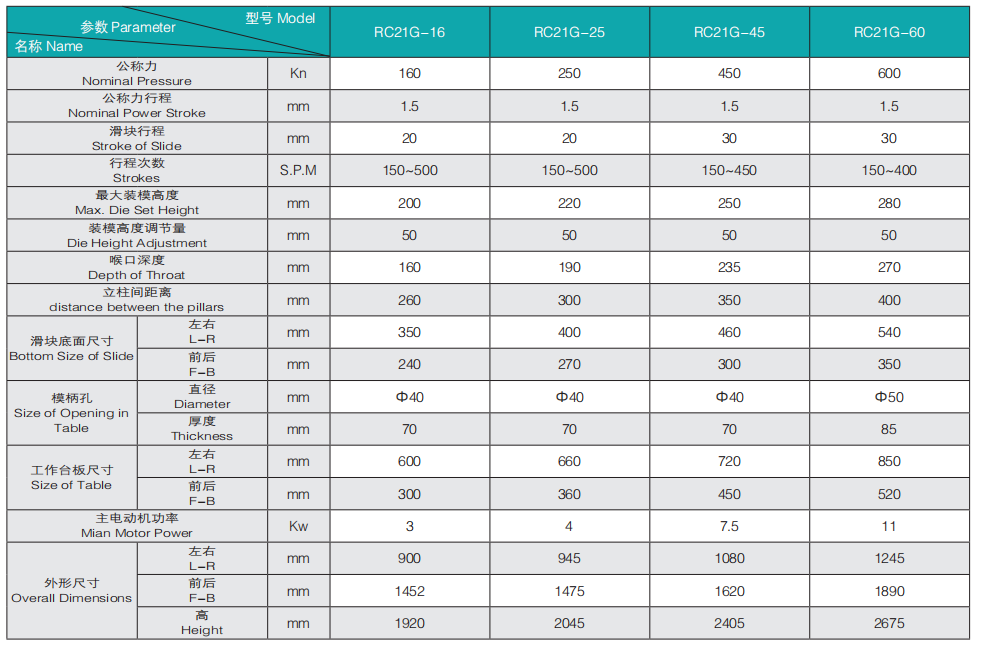

3. Technical parameters

4.Customization

Personalized customization can be carried out according to customer needs.
