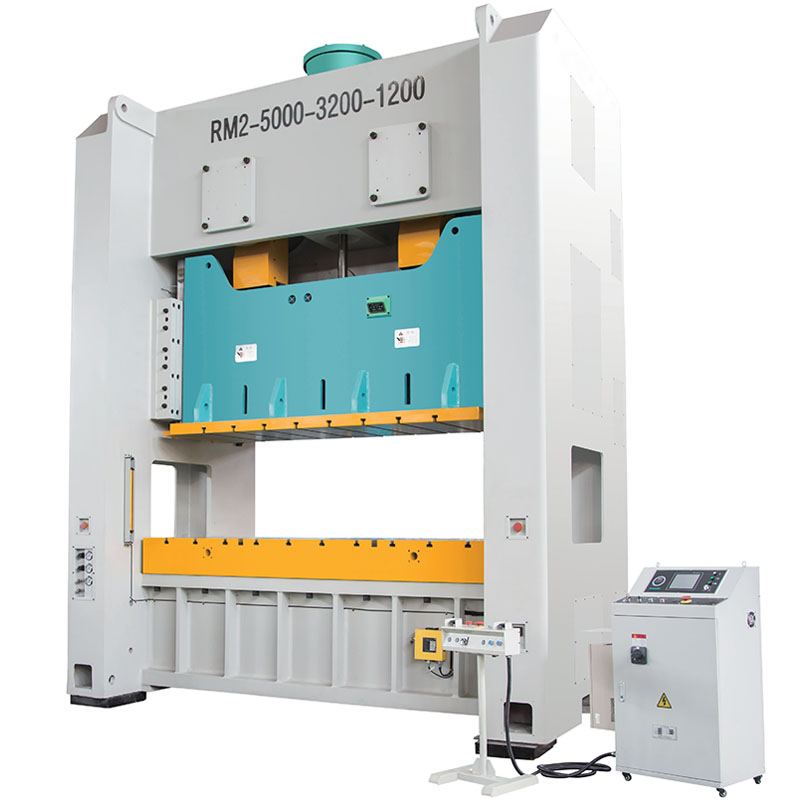

RM2 Series Closed precision two-point press

1.Introduction

Dayeepress RM2 Series Closed precision two-point press,the workbench has a large size and is suitable for large plate stamping, progressive die stamping, and multi station die stamping.The tonnage of the press ranges from 110 tons to 800 tons, with a maximum worktable length of 3500 millimeters and a maximum width of 1250 millimeters.

2.Main performance and characteristics:

●The closed high-rigidity body is designed, the high-quality steel plate is used for welding, and the stability and reliability of the precision of the whole  machine are high by relieving the internal stress;

●The precision machining is high, the noise is low, and the comprehensive clearance is low;

●The high-alloy steel, double crankshaft and dot pitch structure of wide connecting rod are adopted;

●The octahedral long guide rail at the four angles of the sliding block is used for guiding, so that precision is high, and the operation is stable;

●The adjustment of the mold height is precision, safe, convenient and reliable;

●The crankshaft, gear set, connecting rod and other components have high comprehensive performance and durability through the hard oxidization,  grinding and other process treatment;

●The closed high-rigidity body is designed, the high-quality steel plate is used for welding, and the stability and reliability of the precision of the whole  machine are high by relieving the internal stress;

●The automatic thick oil lubrication system is available, so that it is convenient and accurate for supplying the oil; and the oil line alarm function is  provided, so as to ensure the smooth operation of the machine tool;

●The structural design of the whole machine is reasonable, so as to be convenient for realizing the automatic production, reduce the cost, and improve  the efficiency;

●The advanced design philosophy is provided, the noise is low, the consumption is low, and the energy is saved.

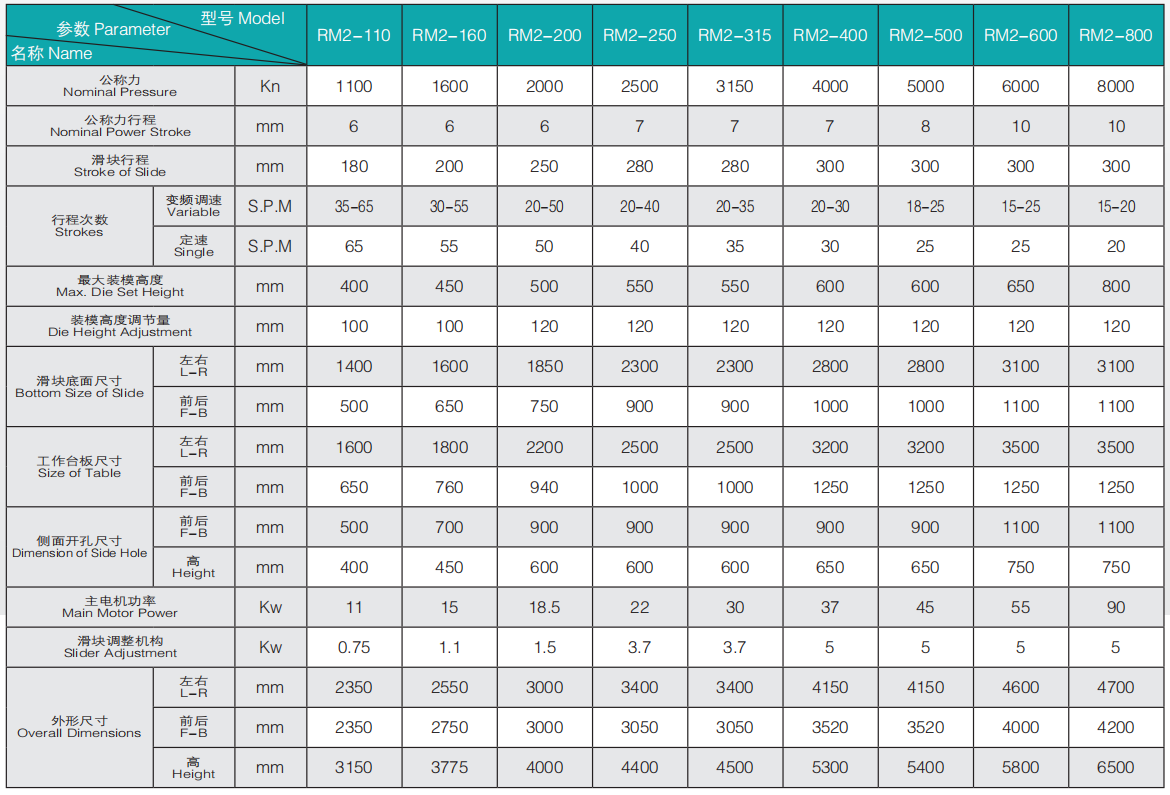

3.Technical parameters

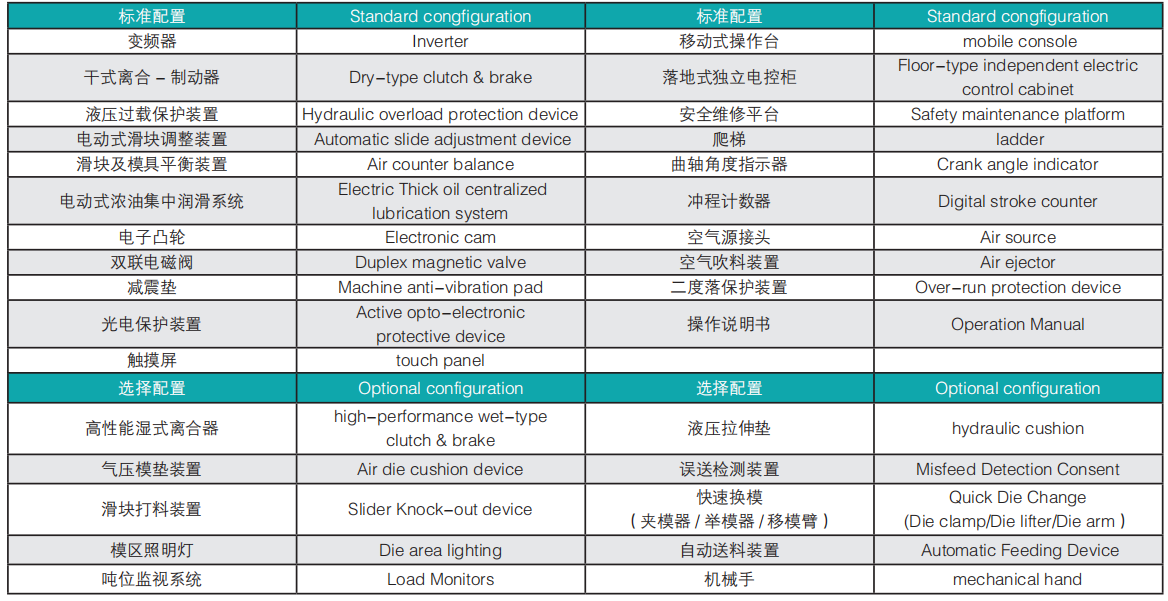

4.Configurations

5.Customized

Personalized customization can be carried out according to customer needs.
